Pneumatic Tools

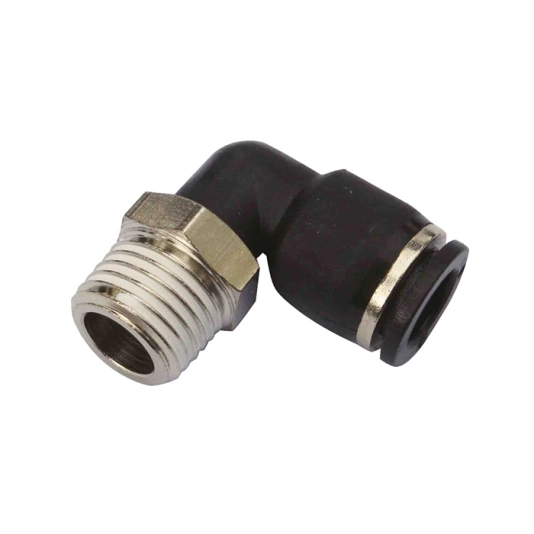

Kennedy KEC8-1MT KEN-FIT E/CONN 8 mm - G1/8 M/T
Elbow Connector to Male Taper
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Download
Products Lainnya
SR500
Highly effective, durable and compact speed ratchet, perfect for a wide range of applications.
Technical Information
• 1/2" square drive,
• M13 bolt capacity.
• Sound pressure Level: 89 db(A)
• Sound Power level: 89 db(A)
• Vibration: 4.0 m/s²
Features and Benefits
• Ball type retainer
• Disc type reversing action
• Very compact, lightweight design
• Ideal for automotive work
• front exhaust
Notes
• Free speed: 150rpm.
• Air inlet thread: 1/4" NPT.
• Minimum air hose size (ID): 10mm (3/8").
• Air pressure: 6.2bar/90psi.
• Air consumption: 4cfm* (1.88 l/s).
• Torque: 68 Nm
• Overall length: 265 mm.
*Based on a 15 second cycle per minute average use.
Highly effective, durable and compact speed ratchet, perfect for a wide range of applications.
Technical Information
• 1/2" square drive,
• M13 bolt capacity.
• Sound pressure Level: 89 db(A)
• Sound Power level: 89 db(A)
• Vibration: 4.0 m/s²
Features and Benefits
• Ball type retainer
• Disc type reversing action
• Very compact, lightweight design
• Ideal for automotive work
• front exhaust
Notes
• Free speed: 150rpm.
• Air inlet thread: 1/4" NPT.
• Minimum air hose size (ID): 10mm (3/8").
• Air pressure: 6.2bar/90psi.
• Air consumption: 4cfm* (1.88 l/s).
• Torque: 68 Nm
• Overall length: 265 mm.
*Based on a 15 second cycle per minute average use.
The CP7749 1/2" impact wrench features a reverse torque of up to 955ft.lbs / 1,300 Nm, enabling quick & efficient loosening and tightening. The tool benefits from S2S technology, which limits stress on the wrist and arm when changing between forward and reverse. The twin hammer impact mechanism and composite housing offer high durability while being both lightweight and compact. The CP7749 series is composed of 2 models: 1/2" short anvil and 1/2" long anvil (2" anvil).
The CP6060-70 series impact wrench features a 3/4" and 1" square drive, and delivers reverse torque up to 1490 Nm / 1100 ft.lb. Designed with the 2-jaw clutch mechanism, aluminium body, and steel clutch housing, it provides strength and compactness to work comfortably in the most demanding industrial environments. The CP0660-70 Series includes 3 models : 3/4" hole, 3/4" ring and 1" hole.
This powerful and versatile air grinder is suitable for use with a wide range of sanding and grinding applications. With a ultra compact design, it is well suited to working in confined or awkward spaces.
Features and Benefits
• Lightweight and durable single piece aluminium body
• Safety release throttle prevents accidental start-ups
• Front exhaust blows away dust and debris
• Precision balanced bearings provide reliability in the most demanding of industrial/automotive applications
Typical Applications
• For use on grinding, polishing, buffing and deburring
• Ideal for cleaning, Smoothing welds seams and castings
• Maintenance applications
Notes
• Supplied with two collet spanners and a comprehensive instruction manual
• Always ensure that the speed of the air tool never exceeds the maximum operating speed of the consumable
• Recommended Consumables - Tungsten Carbide Burrs, Mounted Points, Flap Wheels and Abrasive Bands
Features and Benefits
• Lightweight and durable single piece aluminium body
• Safety release throttle prevents accidental start-ups
• Front exhaust blows away dust and debris
• Precision balanced bearings provide reliability in the most demanding of industrial/automotive applications
Typical Applications
• For use on grinding, polishing, buffing and deburring
• Ideal for cleaning, Smoothing welds seams and castings
• Maintenance applications
Notes
• Supplied with two collet spanners and a comprehensive instruction manual
• Always ensure that the speed of the air tool never exceeds the maximum operating speed of the consumable
• Recommended Consumables - Tungsten Carbide Burrs, Mounted Points, Flap Wheels and Abrasive Bands
