Designed for tire changing applications with a torque limited in forward to 60-70 ft. Lbs / 90-140 Nm and a maximum torque in reverse of 920 ft.lbs / 1,250 Nm, the CP7748TL series limits the risk of over tightening during the tightening phase while also being very powerful when nuts or bolts have to be removed. In addition, the new forward/reverse system & power control (ring system) increase operator comfort while also improving functionality. The CP7748TL Series is composed of 2 models: 1/2" short anvil and 1/2" long anvil (2" anvil)

IW500 - 1/2" Impact Wrench
One piece aluminium housing, 10 position power regulator, thumb switch for reversing, 1/4" NPT air inlet thread for 10mm air hose, 90psi air pressure, 300ft/lbs torque, 3.5cfm* air consumption.

Features and Benefits
• Highly efficient
• Durable aluminum design
• M16 bolt capacity

Notes
• Sound pressure level: 88dBA
• Vibration level: 4.2m/s²
• Overall length: 188mm

*Based on a 15 second cycle per minute average use

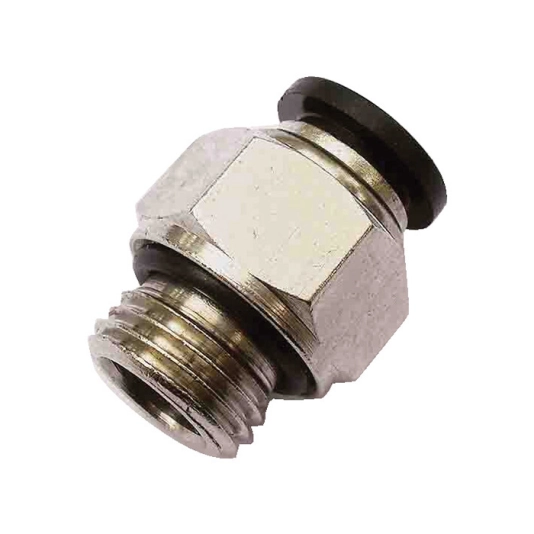

Connector to Female Parallel


Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.


Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.

Branch Tee to Male Taper


Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.


Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
