Pneumatic Tools

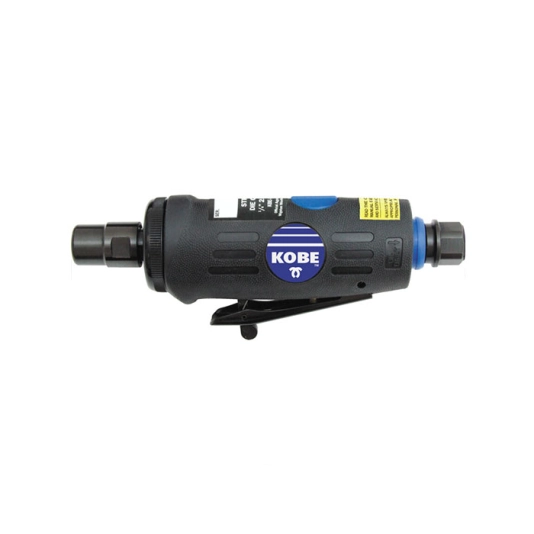

Kobe Blue Line B3456 - Professional Compact, High Speed Air Inline Die Grinder, 25,000rpm
This professional, straight air die grinder possesses a high specification that offers improved user comfort and maximum durability. This versatile air grinder is suitable for use with a wide range of abrasive stones and carbide burrs. With a compact design it is well suited to working in confined spaces and is best used to deburr, polish, blend and grind imperfections. Supplied with two collet spanners.
Features and Benefits
• Designed for continuous use
• 60mm short body Length allows better access to more confined areas
• Planetary gears for longer life and smoother running
• Low profile teasing throttle for precise speed control
• Rotating air inlet to prevent the air hose from tangling
• Vibration dampened rubber body provides improved user grip and comfort over longer periods of use
Typical Applications
• For use when grinding, deburring, buffing and polishing as well as cleaning and smoothing weld seams and castings
• Recommended for use with Tungsten Carbide Burrs, Mounted Points, Flap Wheels and Abrasive Bands
Notes
• Always ensure that the speed of the air tool never exceeds the maximum operating speed of the consumable
Features and Benefits
• Designed for continuous use
• 60mm short body Length allows better access to more confined areas
• Planetary gears for longer life and smoother running
• Low profile teasing throttle for precise speed control
• Rotating air inlet to prevent the air hose from tangling
• Vibration dampened rubber body provides improved user grip and comfort over longer periods of use
Typical Applications
• For use when grinding, deburring, buffing and polishing as well as cleaning and smoothing weld seams and castings
• Recommended for use with Tungsten Carbide Burrs, Mounted Points, Flap Wheels and Abrasive Bands
Notes
• Always ensure that the speed of the air tool never exceeds the maximum operating speed of the consumable
Download
Products Lainnya
Designed for tire changing applications with a torque limited in forward to 60-70 ft. Lbs / 90-140 Nm and a maximum torque in reverse of 920 ft.lbs / 1,250 Nm, the CP7748TL series limits the risk of over tightening during the tightening phase while also being very powerful when nuts or bolts have to be removed. In addition, the new forward/reverse system & power control (ring system) increase operator comfort while also improving functionality. The CP7748TL Series is composed of 2 models: 1/2" short anvil and 1/2" long anvil (2" anvil)
The Equal Tees ensure quick and simple tube insertion whilst also boasting a compact lightweight design with a well proven tube retaining system. The tapered threads have a re-usable thread seal and parallel threads have a rubber washer. The main body is manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar. Available in a variety of sizes to suit your needs.
Features and Benefits
• Suited for use with nylon and polyurethane tubing for versatility of use
• Available in a range of sizes to suit your needs
• Quick and easy tube insertion with a solid seal
• Lightweight design due to the acetal construction, stainless steel retaining ring and nitrile tube seal and acetal resin tube release collar
Typical Applications
• Engineering
• Plumbing
• Garages
Features and Benefits
• Suited for use with nylon and polyurethane tubing for versatility of use
• Available in a range of sizes to suit your needs
• Quick and easy tube insertion with a solid seal
• Lightweight design due to the acetal construction, stainless steel retaining ring and nitrile tube seal and acetal resin tube release collar
Typical Applications
• Engineering
• Plumbing
• Garages
Elbow Connector
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
IWS100X - 1" square drive. Suitable for industrial and commercial production and assembly applications. Side handle for two-handed operation. Top mounted spring balance loop. Easy to use forward/reverse switch and three position power regulator. Top venting exhaust. Oiling points for daily maintenance.
Bolt Capacity: M33
Working torque: 2,030 Nm
Maximum torque: 2,300Nm
Safe working pressure: 6.2bar / 90psi.
Air inlet thread: 1/2" NPT.
Minimum air hose size (ID): 1/2" (13mm).
Air pressure: 6.3bar/90 psi.
Air consumption: 7.0 cfm.
Sound pressure level: 96 dBA.
Sound power level: 101.67 dBA.
Vibration level: 6.0 m/s².
Overall length: 448mm.
Bolt Capacity: M33
Working torque: 2,030 Nm
Maximum torque: 2,300Nm
Safe working pressure: 6.2bar / 90psi.
Air inlet thread: 1/2" NPT.
Minimum air hose size (ID): 1/2" (13mm).
Air pressure: 6.3bar/90 psi.
Air consumption: 7.0 cfm.
Sound pressure level: 96 dBA.
Sound power level: 101.67 dBA.
Vibration level: 6.0 m/s².
Overall length: 448mm.
