Measuring Tools

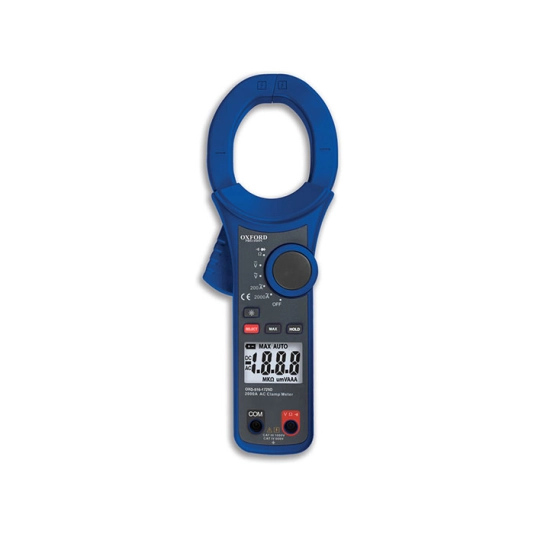

Oxford AUTO RANGE DIGITAL CLAMPMETER2000A AC/DC
The UT220 is a 1999 count AC&DC digital clamp meter that can ensure stable performance, higher degree of safety and reliability to users. It is designed with over-load protection for all ranges, perfect for all professionals measuring currents up to 2000A.
Notes
• Battery not included
Notes
• Battery not included
Download
Products Lainnya
Precision when you need it for infrared temperature calibration
Fluke 9132 and Fluke 9133 Portable Infrared Calibrators features:
• Certify IR pyrometers from –30 °C to 500 °C (–22 °F to 932 °F)
• Large 57 mm (2.25 in) blackbody target
• RTD reference well for contact temperature measurement
• Small, compact design in a blackbody calibrator
Whether you’re using in-line or handheld infrared pyrometers, you need good calibration standards to verify their accuracy. Our portable IR calibrators provide stable blackbody targets for calibrating noncontact IR thermometers from –30 °C to 500 °C.
These blackbody calibrator units feature a temperature controlled measurement surface with a diameter of 2.25 in (57 mm). The target temperature can be controlled in set-point increments of 0.1° from –30 °C to 500 °C and a well is located directly behind the blackbody surface for contact temperature measurement.
Fluke 9132 and Fluke 9133 Portable Infrared Calibrators features:
• Certify IR pyrometers from –30 °C to 500 °C (–22 °F to 932 °F)
• Large 57 mm (2.25 in) blackbody target
• RTD reference well for contact temperature measurement
• Small, compact design in a blackbody calibrator
Whether you’re using in-line or handheld infrared pyrometers, you need good calibration standards to verify their accuracy. Our portable IR calibrators provide stable blackbody targets for calibrating noncontact IR thermometers from –30 °C to 500 °C.
These blackbody calibrator units feature a temperature controlled measurement surface with a diameter of 2.25 in (57 mm). The target temperature can be controlled in set-point increments of 0.1° from –30 °C to 500 °C and a well is located directly behind the blackbody surface for contact temperature measurement.
Manufactured from high quality polished steel. Ground finished points, a fine adjusting screw is mounted across the legs for setting the distance between the two points. A circular spring bow joins the legs, with a knurled extension attached for use when pivoting the dividers. Dividers are used for scribing arcs and circles, a light centre punch mark on the work keeps the pivot leg in the centre while marking.
Features and Benefits
• High quality polished steel with ground finished points
• Adjusting screw mounted across the legs for setting distance between points
• A light centre punch mark on the work keeps pivot leg in the centre while marking
• Ideal for use in scribing arcs and circle applications
Features and Benefits
• High quality polished steel with ground finished points
• Adjusting screw mounted across the legs for setting distance between points
• A light centre punch mark on the work keeps pivot leg in the centre while marking
• Ideal for use in scribing arcs and circle applications
Our Kennedy® rigid steel rulers are made from the finest quality spring-tempered stainless steel and finished in satin chrome. They're flexible and durable with an anti-glare finish for use in any environment.
Features and Benefits
• Anti-glare finish for easy reading in all lighting levels
• Permanent black figures and graduations allow for precise measurements
• Round end complete with hanging hole for easy storage
• Anti-rust for product longevity
Standards
• BS 4372:1968
Features and Benefits
• Anti-glare finish for easy reading in all lighting levels
• Permanent black figures and graduations allow for precise measurements
• Round end complete with hanging hole for easy storage
• Anti-rust for product longevity
Standards
• BS 4372:1968
Automatic measurement. Higher flexibility. Better power quality troubleshooting.
The Fluke 1770 Series Three-Phase Power Quality Analyzer takes the hassle out of power quality logging, troubleshooting, and analysis. Designed to be a faster and easier way to conduct power quality studies, the 1770 Series offers automatic measurements, a simple user interface and setup, best-in-class specifications, and a simpler reporting platform. The instrument can also be powered directly from the measuring circuit, eliminating the need to find an electrical outlet or use long extension cords
With the 1770 Series, you'll never miss critical power quality events—from fast transients up to 8 kV, harmonics up to 30 kHz, dips and swells, and voltage, current, and power measurements that let you understand your electrical system.
Automatic measurement recording
Whether you're doing a quick system check or a detailed power quality study, consistent data is key. The Fluke 1770 Series offers a unique automated measurement taking system that helps ensure you collect the right data every time, while giving you the flexibility to select and adjust certain parameters as needed. Over 500 power quality parameters are recorded by default and guided setup makes it easy to select the right parameters for the system you are working with. Logged data is instantly viewable, downloadable, and shareable with the Fluke Energy Analyze Plus software so you don't have to wait to finish your session before reviewing results or analyzing data
Best measurement confidence
The Fluke 1770 Series is a 2-in-1 device that combines the troubleshooting functionality of a power quality meter with the powerful analysis and logging capabilities of a standalone power quality analyzer—in one easy-to-use handheld device.
The 'Power Quality Meter' function gives you direct access to live data on the screen while in the field, so you can quickly identify potential problems when troubleshooting. The detailed 'Power Quality Logging and Analysis' function takes the hassle out of performing a power quality assessment by guiding you through the setup process to ensure you are capturing the right data every time. Combine these various measurement modes with the unique metering connection auto-correction function, and you can rest assured you won't have to go back for a second measurement—even if you weren't sure what to look for when you started.
Powerful analysis software with easy-to-generate reports
The Fluke 1770 Series Power Quality Analyzers are equipped with the powerful Fluke Energy Analyze Plus software. This software is designed to take the hassle out of other multi-purpose application software. Energy Analyze Plus helps you easily evaluate power quality data, without the need for lengthy training.
Energy Analyze Plus makes it easy to download, analyze, track and report on power quality and energy data. Quickly compare results to historical values, benchmark against industry norms, compare measured data to local conditions, and create a more complete picture of what's happening across your facility, even while data is still being collected. Energy Analyze Plus offers integrated support for the Fluke 1730, 1740, and 1770 Series of Energy Loggers and Power Quality Analyzers.
“In-workshop” and “in-the-field” setup and download via PC application software
- Simple data download using a USB memory stick, WiFi, LTE, Ethernet cable or USB cable
- Analyze every detail of energy consumption and power quality health status with automatic reports
- One-touch reporting creates standardized reports that comply with standards such as EN 50160, IEEE 519, GOST 33073 IEC 61000-2-2, or export data in PQDIF or NeQual or CSV compatible formats for use with third-party software
- Advanced analysis allows users to select recorded parameters and create highly customized measurement views for advanced data correlation
Power Quality
High speed voltage transient recording
Transients negatively affect a healthy system every day and their potential to damage your equipment should not be underestimated. Whether your system experiences impulsive or oscillating transients, the results can be catastrophic and result in problems ranging from insulation failure to total equipment failure. The Fluke 1775 and Fluke 1777 feature advanced transient recording technology to help you clearly identify high-voltage transient conditions, so you have the data you need to stop them. The Fluke 1775 Power Quality Analyzer has 1 MHz sampling capability to record fast transients, while the Fluke 1777 Power Quality Analyzer has 20 MHz sampling capability to record the fastest transients in high detail.
From conventional industrial systems to renewable energy systems to electric vehicles, we have the tools
The Fluke 1770 Series is designed to be safe and easy to use in any measurement environment. The 1770 Series lets you record a variable range of full power quality as well as high speed waveforms, high speed transients and higher frequency harmonics. Everything can be seen directly on the large high-resolution screen. With best-in-class CAT IV 600 V / CAT III 1000 V overvoltage ratings, this analyzer can be used in mains or downstream input receivers, measuring AC and DC inputs, as well as measuring harmonics up to 30 kHz. With the 1770 Series, you can rest assured that you will capture the data you need to make better maintenance decisions, whatever the task.
In accordance with international standards
The Fluke 1770 Series offers the best-in-class accuracy you expect from a Fluke Power Quality Analyzer in a package that meets IEC 61000-4-30 Class A next edition 3. In addition, the 1770 Series has been designed to meet the requirements of the upcoming Class A edition, to comply with EN 50160 and IEEE 519, so you are well prepared to address your future measurement needs.
Work where, when, and how you want
The situation on the ground is different every day. You need a power quality analyzer that you can always carry with you and work the way you need it. With a wide range of accessories and built-in features, the Fluke 1770 Series makes it easy to get the job done. The slim ergonomic design and integrated wrist strap make it easy to hold and the included hanging kit makes it easy to store your analyzer in the cabinet. The integrated internal power supply allows the unit to be powered directly from a rated circuit, while a 90-minute battery helps ensure you can still access and review data even when not connected to a live system.
Transfer data quickly and easily to your PC using USB C, USB A, Ethernet, Wi-Fi, or mobile network support options, depending on your needs. With the built-in GPS module and optional dual isolation antenna extension cable to amplify indoor GPS signals, you can easily synchronize your data with the time for more accurate troubleshooting and analysis.
Calculate current harmonic limits
When downloading data from the Fluke 1770 Series Power Quality Analyzer, the included Energy Analyze Plus software package can compare rated voltage and current harmonics statistical data against various standards, such as EN 50160 or IEEE 519. This is to determine if the data exceeds compliance limits. . With this advanced predictive maintenance feature, current harmonics can be spotted before distortions in voltage appear, so you can prevent unexpected failures or inappropriate situations and increase system uptime. With inverter-based loads and power generation increasing, keeping current harmonics in line is becoming increasingly important to ensure reliable power quality and avoid system downtime.
The Fluke 1770 Series Three-Phase Power Quality Analyzer takes the hassle out of power quality logging, troubleshooting, and analysis. Designed to be a faster and easier way to conduct power quality studies, the 1770 Series offers automatic measurements, a simple user interface and setup, best-in-class specifications, and a simpler reporting platform. The instrument can also be powered directly from the measuring circuit, eliminating the need to find an electrical outlet or use long extension cords
With the 1770 Series, you'll never miss critical power quality events—from fast transients up to 8 kV, harmonics up to 30 kHz, dips and swells, and voltage, current, and power measurements that let you understand your electrical system.
Automatic measurement recording
Whether you're doing a quick system check or a detailed power quality study, consistent data is key. The Fluke 1770 Series offers a unique automated measurement taking system that helps ensure you collect the right data every time, while giving you the flexibility to select and adjust certain parameters as needed. Over 500 power quality parameters are recorded by default and guided setup makes it easy to select the right parameters for the system you are working with. Logged data is instantly viewable, downloadable, and shareable with the Fluke Energy Analyze Plus software so you don't have to wait to finish your session before reviewing results or analyzing data
Best measurement confidence
The Fluke 1770 Series is a 2-in-1 device that combines the troubleshooting functionality of a power quality meter with the powerful analysis and logging capabilities of a standalone power quality analyzer—in one easy-to-use handheld device.
The 'Power Quality Meter' function gives you direct access to live data on the screen while in the field, so you can quickly identify potential problems when troubleshooting. The detailed 'Power Quality Logging and Analysis' function takes the hassle out of performing a power quality assessment by guiding you through the setup process to ensure you are capturing the right data every time. Combine these various measurement modes with the unique metering connection auto-correction function, and you can rest assured you won't have to go back for a second measurement—even if you weren't sure what to look for when you started.
Powerful analysis software with easy-to-generate reports
The Fluke 1770 Series Power Quality Analyzers are equipped with the powerful Fluke Energy Analyze Plus software. This software is designed to take the hassle out of other multi-purpose application software. Energy Analyze Plus helps you easily evaluate power quality data, without the need for lengthy training.
Energy Analyze Plus makes it easy to download, analyze, track and report on power quality and energy data. Quickly compare results to historical values, benchmark against industry norms, compare measured data to local conditions, and create a more complete picture of what's happening across your facility, even while data is still being collected. Energy Analyze Plus offers integrated support for the Fluke 1730, 1740, and 1770 Series of Energy Loggers and Power Quality Analyzers.
“In-workshop” and “in-the-field” setup and download via PC application software
- Simple data download using a USB memory stick, WiFi, LTE, Ethernet cable or USB cable
- Analyze every detail of energy consumption and power quality health status with automatic reports
- One-touch reporting creates standardized reports that comply with standards such as EN 50160, IEEE 519, GOST 33073 IEC 61000-2-2, or export data in PQDIF or NeQual or CSV compatible formats for use with third-party software
- Advanced analysis allows users to select recorded parameters and create highly customized measurement views for advanced data correlation
Power Quality
High speed voltage transient recording
Transients negatively affect a healthy system every day and their potential to damage your equipment should not be underestimated. Whether your system experiences impulsive or oscillating transients, the results can be catastrophic and result in problems ranging from insulation failure to total equipment failure. The Fluke 1775 and Fluke 1777 feature advanced transient recording technology to help you clearly identify high-voltage transient conditions, so you have the data you need to stop them. The Fluke 1775 Power Quality Analyzer has 1 MHz sampling capability to record fast transients, while the Fluke 1777 Power Quality Analyzer has 20 MHz sampling capability to record the fastest transients in high detail.
From conventional industrial systems to renewable energy systems to electric vehicles, we have the tools
The Fluke 1770 Series is designed to be safe and easy to use in any measurement environment. The 1770 Series lets you record a variable range of full power quality as well as high speed waveforms, high speed transients and higher frequency harmonics. Everything can be seen directly on the large high-resolution screen. With best-in-class CAT IV 600 V / CAT III 1000 V overvoltage ratings, this analyzer can be used in mains or downstream input receivers, measuring AC and DC inputs, as well as measuring harmonics up to 30 kHz. With the 1770 Series, you can rest assured that you will capture the data you need to make better maintenance decisions, whatever the task.
In accordance with international standards
The Fluke 1770 Series offers the best-in-class accuracy you expect from a Fluke Power Quality Analyzer in a package that meets IEC 61000-4-30 Class A next edition 3. In addition, the 1770 Series has been designed to meet the requirements of the upcoming Class A edition, to comply with EN 50160 and IEEE 519, so you are well prepared to address your future measurement needs.
Work where, when, and how you want
The situation on the ground is different every day. You need a power quality analyzer that you can always carry with you and work the way you need it. With a wide range of accessories and built-in features, the Fluke 1770 Series makes it easy to get the job done. The slim ergonomic design and integrated wrist strap make it easy to hold and the included hanging kit makes it easy to store your analyzer in the cabinet. The integrated internal power supply allows the unit to be powered directly from a rated circuit, while a 90-minute battery helps ensure you can still access and review data even when not connected to a live system.
Transfer data quickly and easily to your PC using USB C, USB A, Ethernet, Wi-Fi, or mobile network support options, depending on your needs. With the built-in GPS module and optional dual isolation antenna extension cable to amplify indoor GPS signals, you can easily synchronize your data with the time for more accurate troubleshooting and analysis.
Calculate current harmonic limits
When downloading data from the Fluke 1770 Series Power Quality Analyzer, the included Energy Analyze Plus software package can compare rated voltage and current harmonics statistical data against various standards, such as EN 50160 or IEEE 519. This is to determine if the data exceeds compliance limits. . With this advanced predictive maintenance feature, current harmonics can be spotted before distortions in voltage appear, so you can prevent unexpected failures or inappropriate situations and increase system uptime. With inverter-based loads and power generation increasing, keeping current harmonics in line is becoming increasingly important to ensure reliable power quality and avoid system downtime.
