36, End Mill, Regular, Threaded Shank, 6mm, Cobalt High Speed Steel, Uncoated 1

Cutting Tools

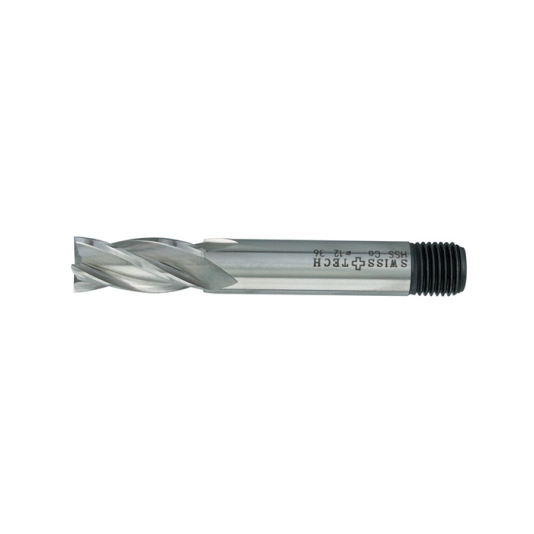

Swisstech 36, End Mill, Regular, Threaded Shank, 6mm, Cobalt High Speed Steel, Uncoated

Series 36 - Regular Series
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835D. Shank cutting diameter to +0.04 -0.0.

Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).

Attribute Value
Brand : SwissTech
Cutter Diameter : 6mm
Cutting Direction : Right Hand
EAN : 5036140206526
SKU : SWT1633606A
ECLASS Code : 21010500
End Mill Type : End Mill
Finish/Coating : Uncoated
Flute Length : 13mmmm
Flute Type : Helical
Length Type : Regular
Material : Cobalt High Speed Steel
Material Grade : M42
Number of Flutes : 4
Overall Length : 57mm
Plunge Type : Centre Cutting
Series : 36
Shank Diameter : 6mm
Shank Diameter Tolerance : h6
Shank Type : Threaded
Standards Met : DIN 1835D DIN 844
UNSPSC Code : 23241614
