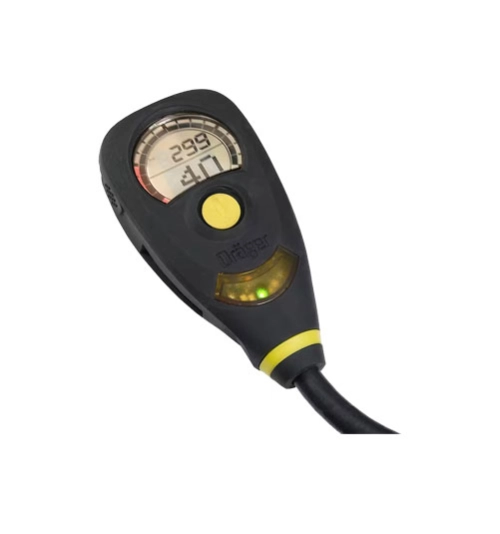

The Dräger Bodyguard® 7000 is an electronic monitoring unit which provides continuous monitoring of personal information and operational status of the Dräger PSS® 7000 and PSS® 5000 self contained breathing apparatus.
Essential data at a glance The Bodyguard 7000 is an all-in-one distress signal unit, pressure gauge and data logger, meaning you don't have to carry additional weight around with you. All key data is brought together clearly and rapidly on one display.
All functions in one handheld device The lightweight device fits snugly in the palm of your hand, with large buttons which are also easy to operate even when wearing gloves. The large display is backlit making it easy to read without the need for a torch, even in conditions of poor visibility (digital and analogue). The new scrolling display text option provides detailed information enabling you to interpret each situation even more clearly.
Continuous data monitoring Pressure and remaining air time are permanently displayed on the Bodyguard 7000, meaning that you can exit an incident safely, confident in the amount of air remaining. User ID and battery level indication are also logged for effective post incident analysis. IFor applications using Draeger PSS Merlin modem, the data can be directly transmitted to the DrägerMan PSS Merlin entry control board.
User ID for easy post incident analysis The Bodyguard 7000 automatically logs data during use - individual user ID enables you to easily and quickly reproduce data about every step you have taken. This can be read using RFID cards. The Bodyguard 7000 even supplies a ready-formatted data report.
Flexible, configurable The Bodyguard 7000 functions can be easily configured according to your own requirements using Draeger PC Link Windows software. Data can be directly transmitted to your computer via an RFID system and processed by the user.
Integrated distress signal unit With integrated motion sensor and manually activated panic button, the Bodyguard 7000 gives clear audible and visual alarms when a fire fighter becomes motionless or is in distress, alerting their colleagues immediately. Option of button or tally version for entry control applications, and all alarms and pre alerts are logged for analysis.
Centralised power supply and electronics The Bodyguard 7000 features a centralised power supply, which is well protected alongside the electronics in the backplate. The electronics provide the display with information as well as transmit data to the FPS-7000 Mask Head-up Display (HUD) and PSS Merlin Modem should it be present, optimising battery logistics and reducing weight.
