Air Circuit Breaker (ACB) is one type of electrical protection device commonly used in electrical systems. Air Circuit Breaker is an electrical protection device used to cut off the flow of electricity in an electrical circuit when there is a disturbance or excess current. This tool is generally used in industrial electrical panels and can be used in electrical systems with quite high voltage.

Air Circuit Breaker works by cutting off the flow of electricity in an electrical circuit when there is a disturbance or excess current. Air Circuit Breaker uses a special system consisting of several components, such as trip unit, operating mechanism, and current transformer. When there is a disturbance in an electrical circuit, the trip unit will detect excess current. Then, it gives a signal to the operating mechanism to cut off the flow of electricity in the circuit. After the electric current is cut off, Air Circuit Breaker will extinguish the arc that occurs using the arc extinguishing system that has been prepared.

The main function of Air Circuit Breaker is to protect electrical equipment and systems from damage due to over current or excess current, which usually occurs due to short circuit or overload.

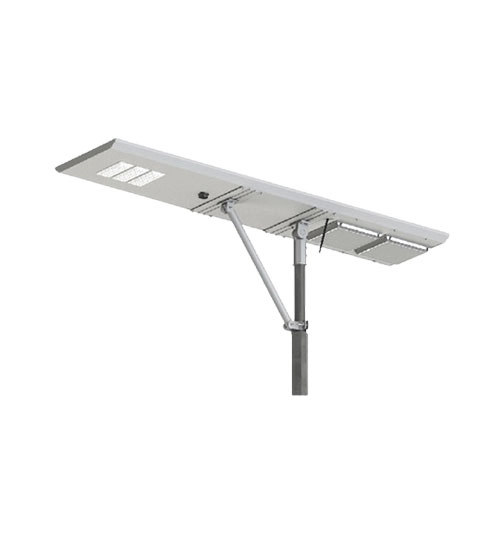

Type of Luminaire : Smart Street Light
Set Model No : NSP10460LR
Type of Light Source : LED
Power Input : 100W
System Lumen Output : 18000 lm
System Efficacy : 180 lm/W
Lifetime : 50000H(L70)
CRI : 70
Dimming : non-Dimmable
Glare Cut Angle : 30deg.
Beam Angle : 120deg.
IP Rating : 66
Ambient Temperature : 5 - 40°C
Dimensions : 340mmx703mmx132mm
Body : ADC & Aluminium Extrution

Type of Luminaire : Standard Floodlight (Pro) A Series
Set Model No : NYS12837LD2031
Type of Light Source : LED
Power Input : 803W
System Lumen Output : 12000 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 64deg.
Beam Angle : 75deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 487mmx537mmx720mm
Body : ADC

Type of Luminaire : Standard Floodlight (Pro) A Series
Set Model No : NYS12847LD2031
Type of Light Source : LED
Power Input : 783W
System Lumen Output : 122300 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 54deg.
Beam Angle : 34deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 487mmx537mmx720mm
Body : ADC
