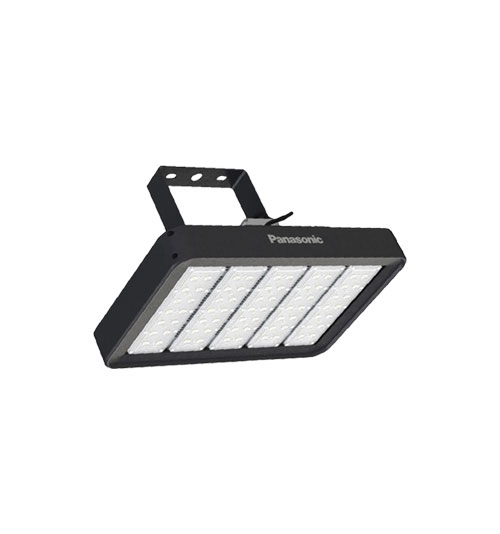

Type of Luminaire : Standard Floodlight (Pro) A Series Set Model No : NNP19941031 Type of Light Source : LED Power Input : 200W System Lumen Output : 26000 lm Power Voltage : 110-240V Power Factor : 0.90 Lifetime : 50000H(L70) CCT : 5000K CRI : 70 Input Frequency : 50/60Hz Dimming : non-Dimmable Glare Cut Angle : 60deg. Beam Angle : 60deg. IP Rating : 65 Ambient Temperature : -40 - 50°C Dimensions : 304mmx473mmx296mm Body : ADC
Type of Luminaire : Street Light EVO Set Model No : NNP11740GL Type of Light Source : LED Power Input : 40W System Lumen Output : 5200 lm Power Voltage : 100-240V Power Factor : 0.90 Lifetime : 50000H(L70) CCT : 5000K CRI : 70 Input Frequency : 50/60Hz Dimming : 5 steps automatic dimming IP Rating : 66 Ambient Temperature : 5°C~40°C Dimensions : 564×157×101mm Body : ADC
M12 AL-0 • Five high performance LEDs provide 1000 Lumens of light output replacing 250 W halogen lights • Integrated magnets, clamping mechanism, and key hole for screws / nails provide multiple mounting options for different surfaces • 3 output modes for optimal brightness and runtime
M12 SAL-0 • Light head rotates 210° and pivots 270° for light in any direction • Collapses down to 78cm with three side handles for easy transportation and storage • Sets up in 5 seconds, Three height positions; 90cm, 127cm & 173cm
Air Circuit Breaker (ACB) is one type of electrical protection device commonly used in electrical systems. Air Circuit Breaker is an electrical protection device used to cut off the flow of electricity in an electrical circuit when there is a disturbance or excess current. This tool is generally used in industrial electrical panels and can be used in electrical systems with quite high voltage.
Air Circuit Breaker works by cutting off the flow of electricity in an electrical circuit when there is a disturbance or excess current. Air Circuit Breaker uses a special system consisting of several components, such as trip unit, operating mechanism, and current transformer. When there is a disturbance in an electrical circuit, the trip unit will detect excess current. Then, it gives a signal to the operating mechanism to cut off the flow of electricity in the circuit. After the electric current is cut off, Air Circuit Breaker will extinguish the arc that occurs using the arc extinguishing system that has been prepared.
The main function of Air Circuit Breaker is to protect electrical equipment and systems from damage due to over current or excess current, which usually occurs due to short circuit or overload.
