Air Circuit Breaker (ACB) is one type of electrical protection device commonly used in electrical systems. Air Circuit Breaker is an electrical protection device used to cut off the flow of electricity in an electrical circuit when there is a disturbance or excess current. This tool is generally used in industrial electrical panels and can be used in electrical systems with quite high voltage.

Air Circuit Breaker works by cutting off the flow of electricity in an electrical circuit when there is a disturbance or excess current. Air Circuit Breaker uses a special system consisting of several components, such as trip unit, operating mechanism, and current transformer. When there is a disturbance in an electrical circuit, the trip unit will detect excess current. Then, it gives a signal to the operating mechanism to cut off the flow of electricity in the circuit. After the electric current is cut off, Air Circuit Breaker will extinguish the arc that occurs using the arc extinguishing system that has been prepared.

The main function of Air Circuit Breaker is to protect electrical equipment and systems from damage due to over current or excess current, which usually occurs due to short circuit or overload.

Type of Luminaire : High Bay Special Environment
Set Model No : NNFC2004388
Type of Light Source LED
Power Input : 200W
System Lumen Output : 28000 lm
System Efficacy : 140 lm/W
Power Voltage : 220-240V
Power Factor : 0.9
Lifetime : 50000H(L70)
CCT : 4000K
CRI : 80
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Beam Angle : 110deg.
IP Rating : 65
Ambient Temperature : -40 - 60°C
Dimensions : 345mmx182mm
Weight : 3.2 kg
Body : ADC(Black)

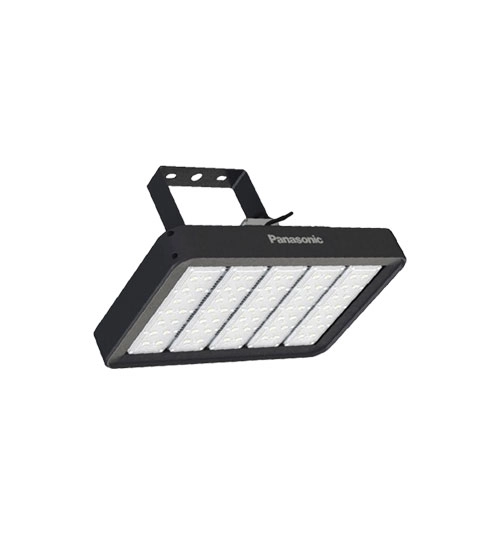

Type of Luminaire : Standard Floodlight (Pro) A Series
Set Model No : NYS12727LD2031
Type of Light Source : LED
Power Input : 706W
System Lumen Output : 106700 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 64deg.
Beam Angle : 75deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 487mmx537mmx720mm
Body : ADC

This Domae product is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 1 protected poles and 2A In rated current and C tripping curve. The Icn rated short circuit breaking capacity is up to 6000A at 230VAC conforming to EN/IEC 60898-1 standard. It is compliant with IEC 60898-1 standard. This miniature circuit breaker protects circuit against short circuit and overload current. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 10000 cycles. The Ue operational voltage is going from 230VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 71.5mm. The weight is 0.190kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C.
