DCMT Turning Inserts

55° Rhombic Insert

Insert Grades QX520
(ISO P10-P35 M10-M30 K10-K30) Coated. An excellent general purpose grade for medium roughing on Steels, Stainless and Cast Irons.

Chip Breaker: PM. Application: Med Cut.

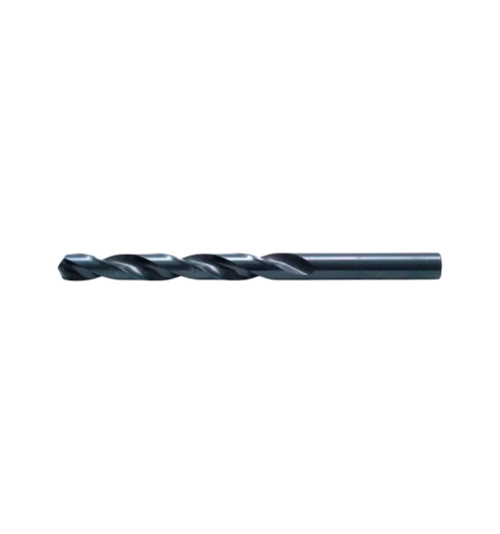

The J100 Series are general purpose HSS straight shank drills with a black oxide finish. Ideal for applications involving steel (including cast steel) cast iron (including malleable cast iron) as well as nickel, brass aluminium alloys and graphite. Their 118° point allows for precise hole alignment and reliable cutting performance whilst the black oxide coating helps reduce heat by retaining coolant on the tool surface. The coating also helps reduce the risk of the tool staining.

Features and Benefits
• High speed steel construction for increased tool durability
• Point angle of 118° for precise holemaking and precision cutting
• Black oxide coating helps aid chip flow, reduce heat and prevent staining
• Ideal for applications involving steel, iron, nickel, brass, aluminium alloy and graphite

Typical Applications
• Cutting and drilling
• Ferrous materials
• Steel
• Iron
• Nickel
• Brass
• Aluminium alloy
• Graphite

Notes
• Available in sizes 0.25mm -20.00mm

Standards
• Manufactured to BS 328/DIN338RN

Series J100 - Metric general purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite.

Features and Benefits
• High speed steel construction with bright finish for increased toughness
• Supplied in the as-ground condition for use with non ferrous materials

Standards
• Manufactured to BS 328/DIN338RN

Notes
• Drills with a bright finish are supplied in the as-ground condition and such tools are used generally in the machining of non-ferrous materials.

An industrial quality general purpose 25 piece jobber drill set suitable for a wide range of steels and supplied in indexing metal case. Manufactured from High Speed Steel (HSS) with a black oxidised finish.

Features and Benefits
• High Speed Steel (HSS) ground flute drills for general purpose use
• Black oxide blue finish coating for bolstered longevity
• Convenient 25 piece metric set ranging from 1 to 13.00mm x 0.5mm to cover board range of uses
• Supplied in an indexed metal case for ease of storage

Contents
• 1mm x 0.5mm (1)
• 1.5mm x 0.5mm (1)
• 2mm x 0.5mm (1)
• 2.5mm x 0.5mm (1)
• 3mm x 0.5mm (1)
• 3.5mm x 0.5mm (1)
• 4mm x 0.5mm (1)
• 4.5mm x 0.5mm (1)
• 5mm x 0.5mm (1)
• 5.5mm x 0.5mm (1)
• 6mm x 0.5mm (1)
• 6.5mm x 0.5mm (1)
• 7mm x 0.5mm (1)
• 7.5mm x 0.5mm (1)
• 8mm x 0.5mm (1)
• 8.5mm x 0.5mm (1)
• 9mm x 0.5mm (1)
• 9.5mm x 0.5mm (1)
• 10mm x 0.5mm (1)
• 10.5mm x 0.5mm (1)
• 11mm x 0.5mm (1)
• 11.5mm x 0.5mm (1)
• 12mm x 0.5mm (1)
• 12.5mm x 0.5mm (1)
• 13mm x 0.5mm (1)

Typical Applications
• Steels
• Cast steel
• Grey cast iron
• Malleable cast iron
• Nickel brass
• Aluminium alloy
• Graphite

Standards
• BS328:Part 1
• DIN 338N
• ANSI B94 -11M
