Pneumatic Tools

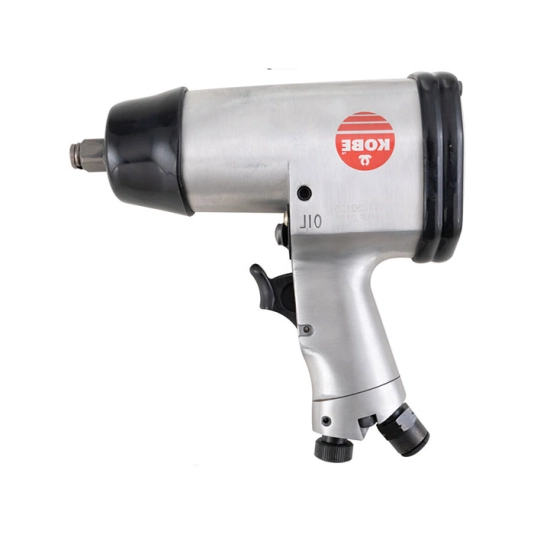

Kobe Red Line IW500 Air Impact Wrench, 1/2in. Drive, 488Nm Max. Torque
IW500 - 1/2" Impact Wrench
One piece aluminium housing, 10 position power regulator, thumb switch for reversing, 1/4" NPT air inlet thread for 10mm air hose, 90psi air pressure, 300ft/lbs torque, 3.5cfm* air consumption.
Features and Benefits
• Highly efficient
• Durable aluminum design
• M16 bolt capacity
Notes
• Sound pressure level: 88dBA
• Vibration level: 4.2m/s²
• Overall length: 188mm
*Based on a 15 second cycle per minute average use
One piece aluminium housing, 10 position power regulator, thumb switch for reversing, 1/4" NPT air inlet thread for 10mm air hose, 90psi air pressure, 300ft/lbs torque, 3.5cfm* air consumption.
Features and Benefits
• Highly efficient
• Durable aluminum design
• M16 bolt capacity
Notes
• Sound pressure level: 88dBA
• Vibration level: 4.2m/s²
• Overall length: 188mm
*Based on a 15 second cycle per minute average use
Download
Products Lainnya
Available in three varying lengths and designed for professional use in garages and workshops, these rubber hose reels are designed to suit your various needs. They can be extended and stopped at any length with a controlled slow rewind which returns it at a safe speed. The auto layering mechanism distributes the hose evenly back into the reel housing to prevent jamming and the product also comes with a 180° swivel wall bracket for affixing to the wall. Possesses an inlet and outlet connection of 1/4" BSP.
Features and Benefits
• The hose is manufactured from a high quality rubber to ensure it has a long life and performs consistently over time
• Has a controlled rewind action which allows the hose to be reeled back at a safe speed
• Auto-layering mechanism prevents jamming of the hose as it returns to the reel and ensures it sits evenly
• Also includes a 180° pivoting wall bracket to give you the option of affixing the product to the wall
Typical Applications
• Ideal for professional use in workshops and garages to deliver both air and water to your desired item
Standards
• BS EN ISO 12100:2010
Features and Benefits
• The hose is manufactured from a high quality rubber to ensure it has a long life and performs consistently over time
• Has a controlled rewind action which allows the hose to be reeled back at a safe speed
• Auto-layering mechanism prevents jamming of the hose as it returns to the reel and ensures it sits evenly
• Also includes a 180° pivoting wall bracket to give you the option of affixing the product to the wall
Typical Applications
• Ideal for professional use in workshops and garages to deliver both air and water to your desired item
Standards
• BS EN ISO 12100:2010
Bulkhead Adaptors
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyureth
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyureth
Branch Tee to Male Taper
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Connector to Male Taper
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
