Measuring Tools

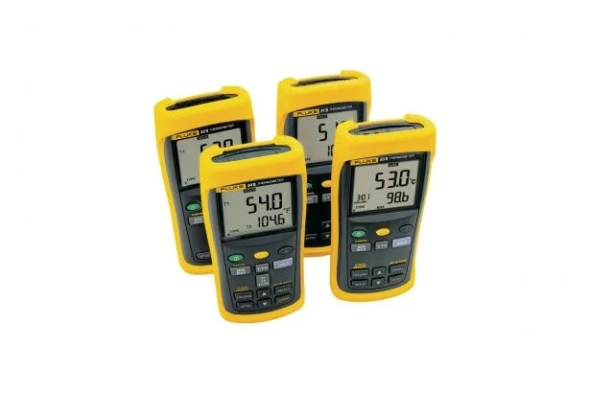

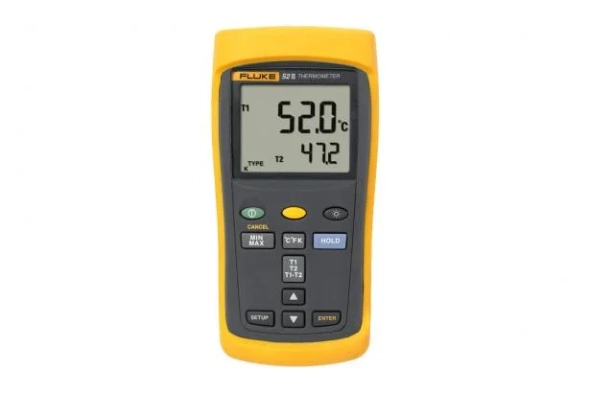

Fluke 52 II Dual Probe Digital Thermometer
- Relative time clocks at MIN, MAX and AVG provide a time reference for important events
- The Electronic Offset function enables thermocouple error compensation to maximize overall accuracy
- Measures J, K, T, and E thermocouple types
- Result reading in ºC, ºF or Kelvin (K)
- Splash and dust resistant bag with shock absorbing holster
- Front panel that is easy to set up and operate
- Sleep mode increases battery life, typical 1000 hours of battery life
- The battery cover makes it easy to replace the battery without opening the calibration seal
- The optional ToolPak accessory allows the thermometer to be hung from any metal object (with a rare earth magnet) or secured around a pipe (with a - hook-and-loop strap) for hands-free operation.
- 3 year warranty
- The Electronic Offset function enables thermocouple error compensation to maximize overall accuracy
- Measures J, K, T, and E thermocouple types
- Result reading in ºC, ºF or Kelvin (K)
- Splash and dust resistant bag with shock absorbing holster
- Front panel that is easy to set up and operate
- Sleep mode increases battery life, typical 1000 hours of battery life
- The battery cover makes it easy to replace the battery without opening the calibration seal
- The optional ToolPak accessory allows the thermometer to be hung from any metal object (with a rare earth magnet) or secured around a pipe (with a - hook-and-loop strap) for hands-free operation.
- 3 year warranty
