Cutting Tools

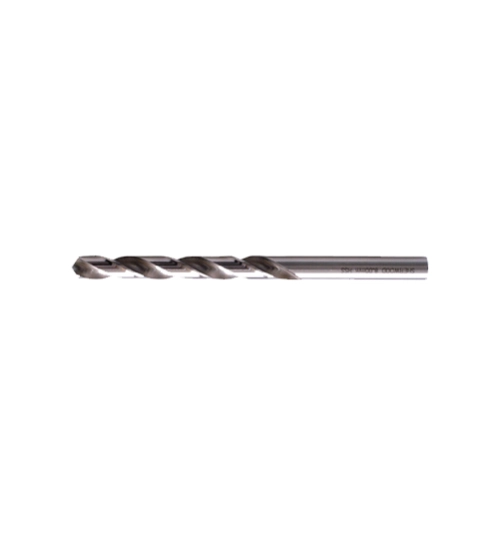

Sherwood Jobber Drill, 3/32in., Normal Helix, High Speed Steel, Bright
Series J100 - Inch
General purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118°, helix angle: normal, web thickness: standard, relief angle: 10°-20°, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BS 328/DIN338RN.
Bright Finish
Drills with a bright finish are supplied in the as-ground condition and such tools are used generally in the machining of non-ferrous materials.
General purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118°, helix angle: normal, web thickness: standard, relief angle: 10°-20°, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BS 328/DIN338RN.
Bright Finish
Drills with a bright finish are supplied in the as-ground condition and such tools are used generally in the machining of non-ferrous materials.
Download
Products Lainnya
Series 36 - Regular Series
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835D. Shank cutting diameter to +0.04 -0.0.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
Dimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835D. Shank cutting diameter to +0.04 -0.0.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
The Kennedy® Carbide Burr Set features eight heads with varying nose shapes suitable for use on hard materials such as steel alloys, carbon and cast iron.
Features and Benefits
• Durable carbide construction
• 8-piece set with varying nose shapes to suit the preferred application
• Features a handy carry case for easy storage and tool identification
• Shank diameter: 6mm
• Max. speed (rpm): 40,000
• Chipbreaker (Cut 9): for use on cast iron, carbon steel, alloy steel 50RC and 60RC
Contents
• 1x C shape ball nosed cylinder 9.6 x 19mm
• 1x E shape oval 9.6 x 16mm
• 1x F shape ball nosed tree 9.6 x 19mm
• 1x G-shape pointed tree 9.6 x 19mm
• 1x A shape cylinder without end cut 9.6 x 19mm
• 1x C shape ball nosed cylinder 12.7 x 25mm
• 1x D shape ball 12.7 x 11mm
• 1x F shape ball nosed tree 12.7 x 25mm
Typical Applications
• Milling
• Deburring
Warnings
• Not suitable for milling large amounts of material
Features and Benefits
• Durable carbide construction
• 8-piece set with varying nose shapes to suit the preferred application
• Features a handy carry case for easy storage and tool identification
• Shank diameter: 6mm
• Max. speed (rpm): 40,000
• Chipbreaker (Cut 9): for use on cast iron, carbon steel, alloy steel 50RC and 60RC
Contents
• 1x C shape ball nosed cylinder 9.6 x 19mm
• 1x E shape oval 9.6 x 16mm
• 1x F shape ball nosed tree 9.6 x 19mm
• 1x G-shape pointed tree 9.6 x 19mm
• 1x A shape cylinder without end cut 9.6 x 19mm
• 1x C shape ball nosed cylinder 12.7 x 25mm
• 1x D shape ball 12.7 x 11mm
• 1x F shape ball nosed tree 12.7 x 25mm
Typical Applications
• Milling
• Deburring
Warnings
• Not suitable for milling large amounts of material
Recommended for simple, low cost removal of broken screws and bolts, these 4 and 6 piece sets from Kennedy are the ideal way to extract screws. designed to remove broken screws without damaging the threads of the component, each set has varying sizes to ensure you find the right size based on your needs.
Features and Benefits
• Available as a 4 or 6 piece set to sllow you to select the product most relevant to your needs
• An economic, easy way to replace broken screws without damaging the component
• Packaging has easy read labeling to inform you of the recommended drill size to fit the extractor best
• Sizes compatible with drills are as follows (in), no.1 - 5/64, no.2 - 7/64, no.3 - 5/32, no.4 - 1/4, no.5 - 19/64, no.6 - 13/32
Contents
• 4 Piece Set Sizes: No. 2, 3, 4 and 5
• 6 Piece Set Sizes: No. 1, 2, 3, 4, 5 and 6
Typical Applications
• Ideal for removing broken or damaged screws from materials without damaging the thread
Features and Benefits
• Available as a 4 or 6 piece set to sllow you to select the product most relevant to your needs
• An economic, easy way to replace broken screws without damaging the component
• Packaging has easy read labeling to inform you of the recommended drill size to fit the extractor best
• Sizes compatible with drills are as follows (in), no.1 - 5/64, no.2 - 7/64, no.3 - 5/32, no.4 - 1/4, no.5 - 19/64, no.6 - 13/32
Contents
• 4 Piece Set Sizes: No. 2, 3, 4 and 5
• 6 Piece Set Sizes: No. 1, 2, 3, 4, 5 and 6
Typical Applications
• Ideal for removing broken or damaged screws from materials without damaging the thread
The J100 Series are general purpose HSS straight shank drills with a black oxide finish. Ideal for applications involving steel (including cast steel) cast iron (including malleable cast iron) as well as nickel, brass aluminium alloys and graphite. Their 118° point allows for precise hole alignment and reliable cutting performance whilst the black oxide coating helps reduce heat by retaining coolant on the tool surface. The coating also helps reduce the risk of the tool staining.
Features and Benefits
• High speed steel construction for increased tool durability
• Point angle of 118° for precise holemaking and precision cutting
• Black oxide coating helps aid chip flow, reduce heat and prevent staining
• Ideal for applications involving steel, iron, nickel, brass, aluminium alloy and graphite
Typical Applications
• Cutting and drilling
• Ferrous materials
• Steel
• Iron
• Nickel
• Brass
• Aluminium alloy
• Graphite
Notes
• Available in sizes 0.25mm -20.00mm
Standards
• Manufactured to BS 328/DIN338RN
Features and Benefits
• High speed steel construction for increased tool durability
• Point angle of 118° for precise holemaking and precision cutting
• Black oxide coating helps aid chip flow, reduce heat and prevent staining
• Ideal for applications involving steel, iron, nickel, brass, aluminium alloy and graphite
Typical Applications
• Cutting and drilling
• Ferrous materials
• Steel
• Iron
• Nickel
• Brass
• Aluminium alloy
• Graphite
Notes
• Available in sizes 0.25mm -20.00mm
Standards
• Manufactured to BS 328/DIN338RN
