Cutting Tools

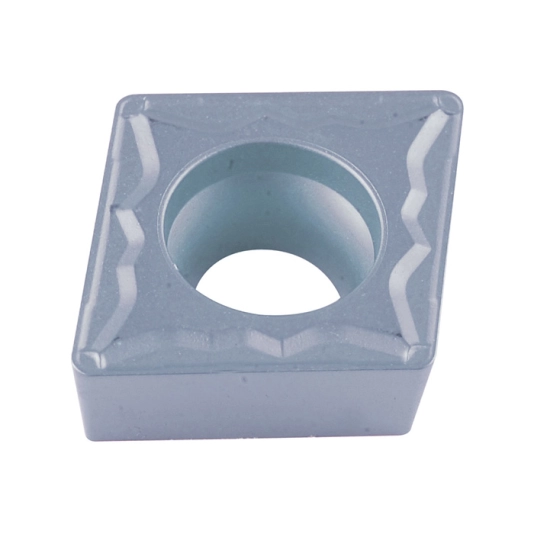

Yamaloy CCMT 09T308-PM, Turning Insert, Grade QX5020, Carbide, 80° Rhombic
CCMT Turning Inserts
80° Rhombic Insert
Insert Grade QX5020
(ISO P10-P35 M10-M30 K10-K30) CVD Coated. An excellent general purpose grade for medium roughing on Steels, Stainless and Cast Irons.
Chip Breaker: PM. Application: Med Cut.
80° Rhombic Insert
Insert Grade QX5020
(ISO P10-P35 M10-M30 K10-K30) CVD Coated. An excellent general purpose grade for medium roughing on Steels, Stainless and Cast Irons.
Chip Breaker: PM. Application: Med Cut.
Download
Products Lainnya
Set of various style burrs packaged in a handy pocket 'glasses case' style plastic holder. Ideal for the shop floor workman with various de-burring tasks. Suitable for precision grinding of carbide gems, ceramics, tough alloys, cermets, tool steels etc
Features and Benefits
• Diamond coated for improved hardness
• Excellent performance with precise grinding
Contents
• Assorted sizes of ball shape
• Cylindrical
• Ball nose cylindrical
• Tree shape and conical
Specifications
• Diamond grip mesh is 120/140
• recommended operating speeds 15,000 - 30,000
• Up to 4.5mm diameter
• Overall length 45mm
• 3mm shank
Typical Applications
• Grinding
• Carbide gems
• Glass
• Ceramics
• Tough alloys
• Cermets
• Tool steels
Features and Benefits
• Diamond coated for improved hardness
• Excellent performance with precise grinding
Contents
• Assorted sizes of ball shape
• Cylindrical
• Ball nose cylindrical
• Tree shape and conical
Specifications
• Diamond grip mesh is 120/140
• recommended operating speeds 15,000 - 30,000
• Up to 4.5mm diameter
• Overall length 45mm
• 3mm shank
Typical Applications
• Grinding
• Carbide gems
• Glass
• Ceramics
• Tough alloys
• Cermets
• Tool steels
CNMG Turning Inserts
80° Rhombic Insert
Insert Grade QX5030
(ISO P20-P40 M20-M30) CVD Coated. - Medium / rough turning and intermediate cutting of steel / stainless steel. Combination of toughest substrate and alumina coating (MT-TiCN + TiC + AL2O3 + TiN) having superior chipping resistance provide wide coverage.
Chip Breaker: NM6. Application: Med Cut.
80° Rhombic Insert
Insert Grade QX5030
(ISO P20-P40 M20-M30) CVD Coated. - Medium / rough turning and intermediate cutting of steel / stainless steel. Combination of toughest substrate and alumina coating (MT-TiCN + TiC + AL2O3 + TiN) having superior chipping resistance provide wide coverage.
Chip Breaker: NM6. Application: Med Cut.
CCGT Turning Inserts
80° Rhombic Insert
Insert Grade QX520
(ISO P10-P35 M10-M30 K10-K30) Coated. An excellent general purpose grade for medium roughing on Steels, Stainless and Cast Irons.
Chip Breaker: PF. Application: Finish.
80° Rhombic Insert
Insert Grade QX520
(ISO P10-P35 M10-M30 K10-K30) Coated. An excellent general purpose grade for medium roughing on Steels, Stainless and Cast Irons.
Chip Breaker: PF. Application: Finish.
45 piece metric coarse and metric fine combined set of machine ground carbon steel taps and dies supplied in a robust plastic carrying case. Suitable for general workshop and maintenance use only.
Features and Benefits
• Range of coarse and fine combined set
• Machine ground carbon steel taps and dies
• Supplied in a robust protective plastic carrying case
• Tap & Die Sizes: Coarse from M6 to M24 & fine from M6 to M24
Contents
Tap & Die Sizes:
• Coarse: M6 x 1.00, M8 x 1.25, M10 x 1.50, M12 x 1.75, M14 x 2.00, M16 x 2.00, M18 x 1.50, M18 x 2.50, M20 x 1.50, M20 x 2.50, M22 x 2.50, M24 x 3.00
• Fine: M6 x 0.75, M8 x 1.00, M10 x 1.25, M12 x 1.50, M14 x 1.50, M16 x 1.50, M18 x 1.50, M20 x 1.50, M22 x 1.50, M24 x 1.50
• Includes: Tap Wrench, 'T' Type Tap Wrench, Die Holder, Die Adaptor, Flat Bladed Screwdriver
Typical Applications
• Threading
• Tapping
Notes
• For general workshop and maintenance use only
Features and Benefits
• Range of coarse and fine combined set
• Machine ground carbon steel taps and dies
• Supplied in a robust protective plastic carrying case
• Tap & Die Sizes: Coarse from M6 to M24 & fine from M6 to M24
Contents
Tap & Die Sizes:
• Coarse: M6 x 1.00, M8 x 1.25, M10 x 1.50, M12 x 1.75, M14 x 2.00, M16 x 2.00, M18 x 1.50, M18 x 2.50, M20 x 1.50, M20 x 2.50, M22 x 2.50, M24 x 3.00
• Fine: M6 x 0.75, M8 x 1.00, M10 x 1.25, M12 x 1.50, M14 x 1.50, M16 x 1.50, M18 x 1.50, M20 x 1.50, M22 x 1.50, M24 x 1.50
• Includes: Tap Wrench, 'T' Type Tap Wrench, Die Holder, Die Adaptor, Flat Bladed Screwdriver
Typical Applications
• Threading
• Tapping
Notes
• For general workshop and maintenance use only
