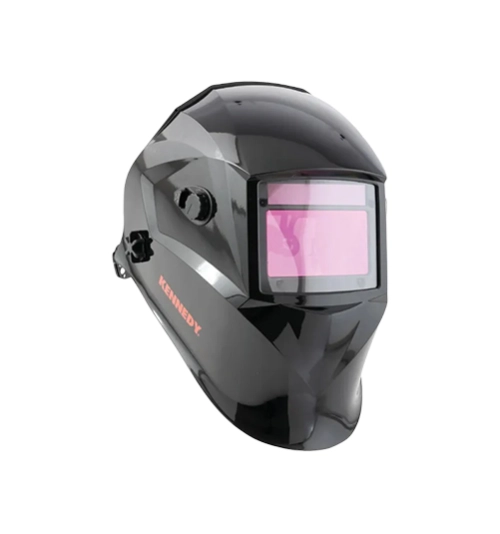

Kennedy KWH100B, Welding Helmet, Black
KWH100 polyamide welding helmets with dedicated grinding mode.
Features and Benefits
• Auto darkening lenses which automatically change from light to dark shade when arc is struck
• External sensitivity control provides clear vision both prior to and during welding
• Special turnover headband mechanism offers greater comfort and reduces fatigue
• Ultra high-performance filters protect against UV and IR - up to Shade DIN16
• Dual powered - Solar cells and CR2450 lithium battery
• Power On/Off: Fully automatic
• Large view - 98 x 55mm
• Impact resistant
• Corrosion resistant
• Lightweight
• Manufactured from durable and flame-retardant material
Typical Applications
• Suitable for all kinds of welding types, including TIG low amperage
Notes
• Light State: DIN4
• Variable Shade: From DIN9 to DIN13
• Operating Temperature: -5°C to +55°C (23°F to 131°F)
• Storing Temperature: -20°C to +70°C (-4°F to 158°F)
Standards
• Full conformity with related DIN EN 379, DIN EN 175 B and ANSI Z87.1
Features and Benefits
• Auto darkening lenses which automatically change from light to dark shade when arc is struck
• External sensitivity control provides clear vision both prior to and during welding
• Special turnover headband mechanism offers greater comfort and reduces fatigue
• Ultra high-performance filters protect against UV and IR - up to Shade DIN16
• Dual powered - Solar cells and CR2450 lithium battery
• Power On/Off: Fully automatic
• Large view - 98 x 55mm
• Impact resistant
• Corrosion resistant
• Lightweight
• Manufactured from durable and flame-retardant material
Typical Applications
• Suitable for all kinds of welding types, including TIG low amperage
Notes
• Light State: DIN4
• Variable Shade: From DIN9 to DIN13
• Operating Temperature: -5°C to +55°C (23°F to 131°F)
• Storing Temperature: -20°C to +70°C (-4°F to 158°F)
Standards
• Full conformity with related DIN EN 379, DIN EN 175 B and ANSI Z87.1
Download
Produk Lainnya
The WeldSkill 155 is a self-contained single phase welding inverter, capable of performing MIG (FCAW/GMAW), Stick (MMAW) and Lift TIG (GTAW) welding processes.
• MIG, STICK, TIG Welding Inverter
• Plug & Play – runs on any 10 Amp power point
• Digital Amperage and Voltage Meters
• Designed specifically for the home handyman/tradesman
• 2-Year Warranty
This unit is compact, portable, and simple to use, making the ideal welder for those who want to do light fabrication, maintenance and repairs or DIY projects, without compromising on quality or safety.
Ready to plug & play, the WeldSkill 155 is fitted with a 10Amp plug, so you can plug in and weld – anytime, anywhere.
CONTENTS:
• WeldSkill 155 Power Source (13.7kg)
• E-180 MIG Torch with Euro Connection, 3m
• Twistlock Electrode Holder with 3m Lead
• CutSkill Argon Regulator/Flowmeter
• Work Clamp with 3m Lead
• Shielding Gas Hose Assembly, 3m
• Feed Rolls: 0.8/0.9mm Flux Cored (Fitted), 0.8/0.9mm V Groove
• Contact Tip: 0.8mm (Fitted)
• Operating Manual
• MIG, STICK, TIG Welding Inverter
• Plug & Play – runs on any 10 Amp power point
• Digital Amperage and Voltage Meters
• Designed specifically for the home handyman/tradesman
• 2-Year Warranty
This unit is compact, portable, and simple to use, making the ideal welder for those who want to do light fabrication, maintenance and repairs or DIY projects, without compromising on quality or safety.
Ready to plug & play, the WeldSkill 155 is fitted with a 10Amp plug, so you can plug in and weld – anytime, anywhere.
CONTENTS:
• WeldSkill 155 Power Source (13.7kg)
• E-180 MIG Torch with Euro Connection, 3m
• Twistlock Electrode Holder with 3m Lead
• CutSkill Argon Regulator/Flowmeter
• Work Clamp with 3m Lead
• Shielding Gas Hose Assembly, 3m
• Feed Rolls: 0.8/0.9mm Flux Cored (Fitted), 0.8/0.9mm V Groove
• Contact Tip: 0.8mm (Fitted)
• Operating Manual
Integrated electronics allows constant welding power for a very soft fusion induced to its direct current. Suitable for all types of electrodes such as steel, stainless steel or cast iron, it is ideal for intensive use by the public or the trade , it is can also be used for precision work in TIG Lift and MMA Pulse.
• Remarkable arc performance, basic electrodes will not longer be a problem.
• Very good penetration and perfect arc stability.
• MMA Pulse : Developed for pipe welding as well as vertical welding.
• Delivered in a case with earth clamp and electrode holder.
• With an IP21 protection rate, it is suitable for outdoor work on site.
• Not affected by mains fluctuations or arc length.
• Protected and compatible with a Generator 6Kw (7,5Kva)
TIG Lift :
• For the meticulous work on thin metal sheets
• Easy start
• Finish quality
• Downslope auto
• Remarkable arc performance, basic electrodes will not longer be a problem.
• Very good penetration and perfect arc stability.
• MMA Pulse : Developed for pipe welding as well as vertical welding.
• Delivered in a case with earth clamp and electrode holder.
• With an IP21 protection rate, it is suitable for outdoor work on site.
• Not affected by mains fluctuations or arc length.
• Protected and compatible with a Generator 6Kw (7,5Kva)
TIG Lift :
• For the meticulous work on thin metal sheets
• Easy start
• Finish quality
• Downslope auto
Designed to hold Tungsten electrodes and transfer current whilst using your TIG torch, these collets are ideal for use on WP17, WP18 and WP26 torches. Available in varying sizes to suit your required wire size, they are crucial in upholding the quality of your TIG welding torch.
Features and Benefits
• An economical way to keep your TIG torch operating to its full potential
• Manufactured to a high standard to ensure a steady current and provide a stable arc needed for precision welding
• Available in various sizes to ensure you find the correct fit for your torch
Typical Applications
• Ideal for use with WP17, WP18 and WP26 TIG welding torches to hold the Tungsten as you weld
Features and Benefits
• An economical way to keep your TIG torch operating to its full potential
• Manufactured to a high standard to ensure a steady current and provide a stable arc needed for precision welding
• Available in various sizes to ensure you find the correct fit for your torch
Typical Applications
• Ideal for use with WP17, WP18 and WP26 TIG welding torches to hold the Tungsten as you weld
Transmig 185 Ultra features an impressive AUTO SET function that allows the user to weld like a Pro with no previous welding experience necessary.
Simply select the material type, thickness & consumable diameter and AUTO SET will pre-set the Wirefeed Speed (Amperage) and Voltage (MIG) along a pre-programmed synergic line. Experienced welders can then customise their settings by tweaking their wire speed and volts according to their technique and other factors. The AUTO SET function is available in all 3 processes: MIG, STICK and TIG!
Easily return to your previous weld thanks to a sophisticated Memory Function, or save up to 9 of your favourite weld settings!
Transmig 185 Ultra comes with an integrated wire feeder that holds up to a 200mm spool, and boasts a range of Professional Features to ensure optimal welding results:
• Burnback Control
• Arc Control
• 2T/4T
• Spot/Stitch Weld
• Pre/Post Flow
• Up/Down Slope
• Arc Force
• Hot Start
• Anti-Stick
• VRD (applicable in Stick mode only).
Most importantly the 185 Ultra is fitted with a 10Amp plug, allowing you the flexibility to plug and play anywhere in your home or workshop.
The power source weighs just over 17kg, and all accessories can be packed inside a convenient purpose built Heavy Duty Backpack (W4018001), making the Ultra portable and ideal for any home or job site.
The Transmig 185 Ultra is back by a 3-year warranty and is fully compliant to Australian Standard AS 60974.1 and IEC 60974.1 so you know you have a safe product you can trust!
With excellent welding performance across a broad range of applications, anyone can weld like a Pro!
Simply select the material type, thickness & consumable diameter and AUTO SET will pre-set the Wirefeed Speed (Amperage) and Voltage (MIG) along a pre-programmed synergic line. Experienced welders can then customise their settings by tweaking their wire speed and volts according to their technique and other factors. The AUTO SET function is available in all 3 processes: MIG, STICK and TIG!
Easily return to your previous weld thanks to a sophisticated Memory Function, or save up to 9 of your favourite weld settings!
Transmig 185 Ultra comes with an integrated wire feeder that holds up to a 200mm spool, and boasts a range of Professional Features to ensure optimal welding results:
• Burnback Control
• Arc Control
• 2T/4T
• Spot/Stitch Weld
• Pre/Post Flow
• Up/Down Slope
• Arc Force
• Hot Start
• Anti-Stick
• VRD (applicable in Stick mode only).
Most importantly the 185 Ultra is fitted with a 10Amp plug, allowing you the flexibility to plug and play anywhere in your home or workshop.
The power source weighs just over 17kg, and all accessories can be packed inside a convenient purpose built Heavy Duty Backpack (W4018001), making the Ultra portable and ideal for any home or job site.
The Transmig 185 Ultra is back by a 3-year warranty and is fully compliant to Australian Standard AS 60974.1 and IEC 60974.1 so you know you have a safe product you can trust!
With excellent welding performance across a broad range of applications, anyone can weld like a Pro!
