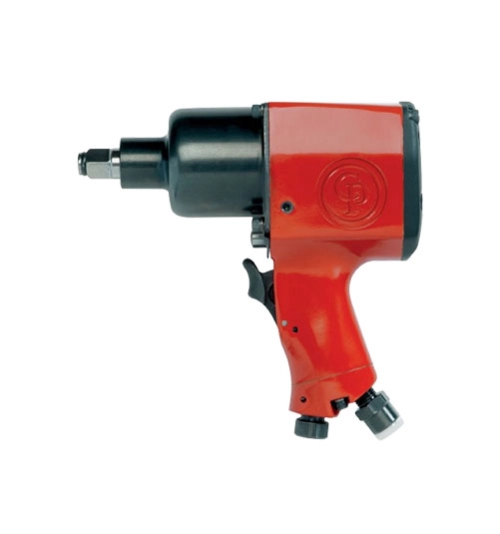

Chicago Pneumatic CP9541/42/61 Series - Impact Wrenches
The CP9541/42/61 series of 3/4", 1" impact wrenches - features the fast and reliable Dyna-Pact pin clutch mechanism, an aluminium body, and steel clutch housing. The design offers high performance in term of torque, vibration, and durability for MRO applications. The range consists of 3 models: CP9541 with ring socket retainer, CP9542 with pin socket retainer for a maximum reverse torque of up to 610 Nm /450 ft.lb. and the 3/4" CP9561 with hole socket retainer, which delivers a maximum reverse torque of up to 1,250 Nm /885 ft.lb.
Download
Produk Lainnya
B7444 - Suitable for production and assembly applications. Twin hammer mechanism. 1/2" square drive. Three position dial style speed regulator. Forward/reverse selection. Ergonomic and comfortable handle grip. Fixed inlet and exhaust.
Forward: position 1: 4000rpm, position 2: 5000rpm, position 3: 7000rpm.
Reverse: position 1: 3000rpm, position 2: 5000rpm, position 3: 7000rpm.
Square : 1/2"
Maximum torque: 813Nm
Recommended air pressure: 6.2bar/90psi.
Air consumption:(113ltr/min).
Air inlet thread: 1/4" NPT.
Minimum air hose size (ID): 10mm (3/8").
*Based on a 15 second cycle per minute average use.
Forward: position 1: 4000rpm, position 2: 5000rpm, position 3: 7000rpm.
Reverse: position 1: 3000rpm, position 2: 5000rpm, position 3: 7000rpm.
Square : 1/2"
Maximum torque: 813Nm
Recommended air pressure: 6.2bar/90psi.
Air consumption:(113ltr/min).
Air inlet thread: 1/4" NPT.
Minimum air hose size (ID): 10mm (3/8").
*Based on a 15 second cycle per minute average use.
Branch Tee to Male Taper
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Designed for heavy tire changing applications with its torque limited in forward of 370 ft.lbs / 500 Nm and its maximum torque in reverse of 1,920 ft.lbs / 2,600Nm, the 1" impact wrench CP7782TL series limits the risk of over tightening during the tightening phase, while at the same time being very powerful once nuts or bolts have to be removed. In addition, the pinless closed reinforced rocking dog impact mechanism and metal housing offer high durability.
Bulkhead Adaptors
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
