Pneumatic Tools

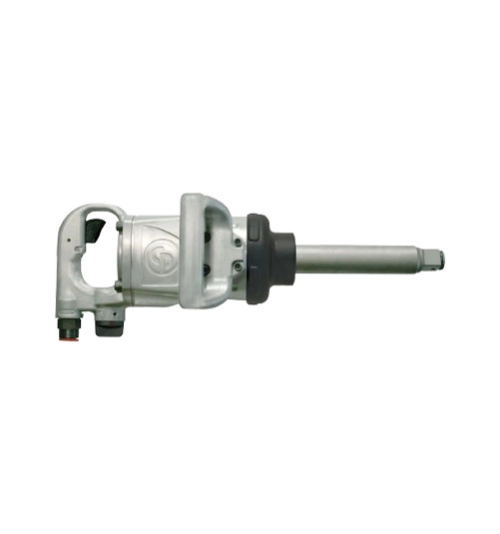

Chicago Pneumatic CP7778 Series - Impact Wrenches
This 1" impact wrench, designed for tire changing applications and general maintenance with its high torque of 1,620 ft.lbs / 2,200 Nm is highly recommended. The rocking dog impact mechanism and metal housing offer high durability. The CP7778 series is composed of 2 models: 1" short anvil and 1" long anvil (6" anvil)
Download
Produk Lainnya
SR500
Highly effective, durable and compact speed ratchet, perfect for a wide range of applications.
Technical Information
• 1/2" square drive,
• M13 bolt capacity.
• Sound pressure Level: 89 db(A)
• Sound Power level: 89 db(A)
• Vibration: 4.0 m/s²
Features and Benefits
• Ball type retainer
• Disc type reversing action
• Very compact, lightweight design
• Ideal for automotive work
• front exhaust
Notes
• Free speed: 150rpm.
• Air inlet thread: 1/4" NPT.
• Minimum air hose size (ID): 10mm (3/8").
• Air pressure: 6.2bar/90psi.
• Air consumption: 4cfm* (1.88 l/s).
• Torque: 68 Nm
• Overall length: 265 mm.
*Based on a 15 second cycle per minute average use.
Highly effective, durable and compact speed ratchet, perfect for a wide range of applications.
Technical Information
• 1/2" square drive,
• M13 bolt capacity.
• Sound pressure Level: 89 db(A)
• Sound Power level: 89 db(A)
• Vibration: 4.0 m/s²
Features and Benefits
• Ball type retainer
• Disc type reversing action
• Very compact, lightweight design
• Ideal for automotive work
• front exhaust
Notes
• Free speed: 150rpm.
• Air inlet thread: 1/4" NPT.
• Minimum air hose size (ID): 10mm (3/8").
• Air pressure: 6.2bar/90psi.
• Air consumption: 4cfm* (1.88 l/s).
• Torque: 68 Nm
• Overall length: 265 mm.
*Based on a 15 second cycle per minute average use.
This series of ultralight, ergonomic impact wrenches, designed with a durable twin hammer clutch mechanism is highly recommended. The advantages of pneumatic technology are reinforced by the lightweight composite body design and an aluminium clutch housing for long-term use. Bolt mounting and removal is facilitated by ergonomic options such as an integrated bail and rubber grip handle. The CP82 series is available in 9 models with pin or ring dual socket retainer for a maximum reverse torque from 450 up to 1,650 Nm (332 up to 1217 ft.lb). The range extends from 3/8" to 3/4".
Stem Reducers
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Elbow Connector
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
