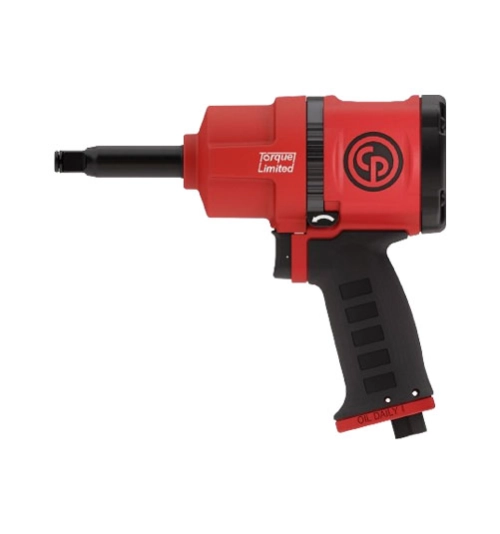

Chicago Pneumatic CP7748TL Series - Impact Wrenches
Designed for tire changing applications with a torque limited in forward to 60-70 ft. Lbs / 90-140 Nm and a maximum torque in reverse of 920 ft.lbs / 1,250 Nm, the CP7748TL series limits the risk of over tightening during the tightening phase while also being very powerful when nuts or bolts have to be removed. In addition, the new forward/reverse system & power control (ring system) increase operator comfort while also improving functionality. The CP7748TL Series is composed of 2 models: 1/2" short anvil and 1/2" long anvil (2" anvil)
Download
Produk Lainnya
B7444 - Suitable for production and assembly applications. Twin hammer mechanism. 1/2" square drive. Three position dial style speed regulator. Forward/reverse selection. Ergonomic and comfortable handle grip. Fixed inlet and exhaust.
Forward: position 1: 4000rpm, position 2: 5000rpm, position 3: 7000rpm.
Reverse: position 1: 3000rpm, position 2: 5000rpm, position 3: 7000rpm.
Square : 1/2"
Maximum torque: 813Nm
Recommended air pressure: 6.2bar/90psi.
Air consumption:(113ltr/min).
Air inlet thread: 1/4" NPT.
Minimum air hose size (ID): 10mm (3/8").
*Based on a 15 second cycle per minute average use.
Forward: position 1: 4000rpm, position 2: 5000rpm, position 3: 7000rpm.
Reverse: position 1: 3000rpm, position 2: 5000rpm, position 3: 7000rpm.
Square : 1/2"
Maximum torque: 813Nm
Recommended air pressure: 6.2bar/90psi.
Air consumption:(113ltr/min).
Air inlet thread: 1/4" NPT.
Minimum air hose size (ID): 10mm (3/8").
*Based on a 15 second cycle per minute average use.
Elbow Connector to Male Taper
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
The CP772 Series is the "Classic" 3/4" impact wrench, designed with a pin clutch mechanism in oil bath and a metal motor housing for high durability.
Professional extended air die grinder suitable for use on a wide range of applications with an extended spindle for extra reach in "hard to get at" areas
Features and Benefits
• Extended spindle allowing two-handed operation
• Safety release throttle prevents accidental start-ups
• Front exhaust blows away dust and debris
• Fitted with long collet nut
• Supplied with two collet spanners and a comprehensive instruction manual
Typical Applications
• For use on grinding, polishing, buffing and deburring
• Ideal for cleaning, Smoothing welds seams and castings
• Maintenance applications
Notes
• Always ensure that the speed of the air tool never exceeds the maximum operating speed of the consumable
• Recommended Consumables - Tungsten Carbide Burrs, Mounted Points, Flap Wheels and Abrasive Bands
Features and Benefits
• Extended spindle allowing two-handed operation
• Safety release throttle prevents accidental start-ups
• Front exhaust blows away dust and debris
• Fitted with long collet nut
• Supplied with two collet spanners and a comprehensive instruction manual
Typical Applications
• For use on grinding, polishing, buffing and deburring
• Ideal for cleaning, Smoothing welds seams and castings
• Maintenance applications
Notes
• Always ensure that the speed of the air tool never exceeds the maximum operating speed of the consumable
• Recommended Consumables - Tungsten Carbide Burrs, Mounted Points, Flap Wheels and Abrasive Bands
