SR500
Highly effective, durable and compact speed ratchet, perfect for a wide range of applications.

Technical Information
• 1/2" square drive,
• M13 bolt capacity.
• Sound pressure Level: 89 db(A)
• Sound Power level: 89 db(A)
• Vibration: 4.0 m/s²

Features and Benefits
• Ball type retainer
• Disc type reversing action
• Very compact, lightweight design
• Ideal for automotive work
• front exhaust

Notes
• Free speed: 150rpm.
• Air inlet thread: 1/4" NPT.
• Minimum air hose size (ID): 10mm (3/8").
• Air pressure: 6.2bar/90psi.
• Air consumption: 4cfm* (1.88 l/s).
• Torque: 68 Nm
• Overall length: 265 mm.

*Based on a 15 second cycle per minute average use.

Widely used for fixing pipes and cables in all industries.





Features and Benefits


• Zinc plated to protect against corrosion


• Durable steel base material


• Available in a comprehensive range of sizes





Standards


• DIN 72571

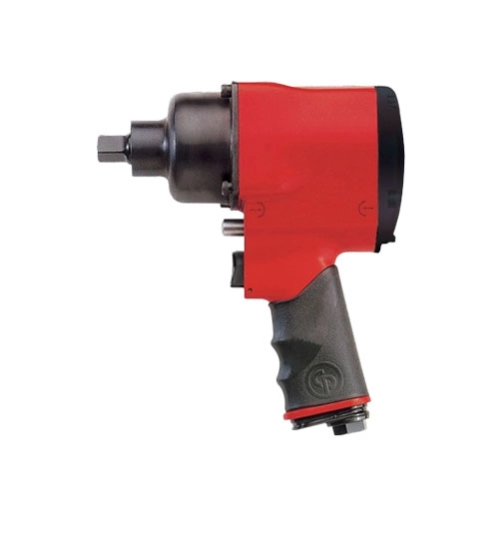

The CP6500 1/2" impact wrench is a safe bet. With its powerful oil bath twin hammer clutch mechanism, aluminium body, and steel clutch housing, it is a perfect bolting tool for tough environments. It delivers max reverse torque up to 850 Nm /625 ft.lb. The oil bath clutch mechanism guarantees a low level of friction, which increases clutch component lifespan. The CP6500 Series includes 2 models: RS : ring socket retainer and PSR : pin socket retainer.

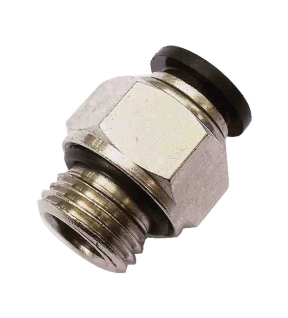

Bulkhead Adaptors


Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.


Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyureth
