Optimize bolting and unbolting with this 1" pistol impact wrench. Featuring a durable two jaws clutch mechanism, metal body and clutch housing, this tool is designed to operate comfortably in maintenance environments. The CP796 Series is defined by 1 pistol model (short anvil). The CP796 Series Features a pistol model with a short anvil.

SR500
Highly effective, durable and compact speed ratchet, perfect for a wide range of applications.

Technical Information
• 1/2" square drive,
• M13 bolt capacity.
• Sound pressure Level: 89 db(A)
• Sound Power level: 89 db(A)
• Vibration: 4.0 m/s²

Features and Benefits
• Ball type retainer
• Disc type reversing action
• Very compact, lightweight design
• Ideal for automotive work
• front exhaust

Notes
• Free speed: 150rpm.
• Air inlet thread: 1/4" NPT.
• Minimum air hose size (ID): 10mm (3/8").
• Air pressure: 6.2bar/90psi.
• Air consumption: 4cfm* (1.88 l/s).
• Torque: 68 Nm
• Overall length: 265 mm.

*Based on a 15 second cycle per minute average use.

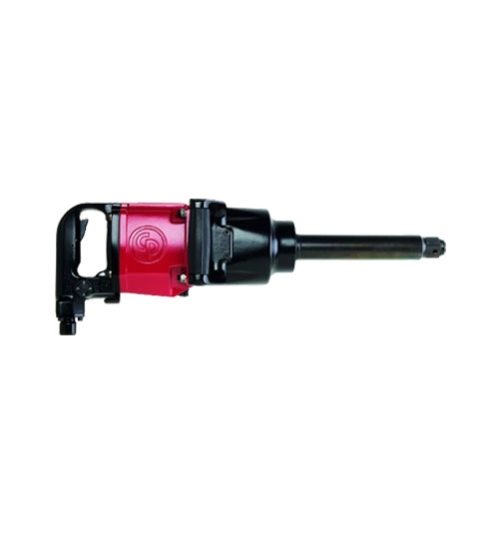

Increased robustness thanks to the powerful 1-1/2" impact wrench, designed with oil bath twin hammer clutch mechanism, aluminium body, and clutch housing. With a maximum reverse torque of up to 3,900 Nm / 2,875 ft.lb., the CP6930-D35 is the ideal solution for maintenance applications. It is reversible and its steel trigger allows makes it easy to use in the bolting phases. The CP6930-D35 is equipped with a hole socket retainer for maximum safety.

Connector to Male Taper


Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.


Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
