Measuring Tools

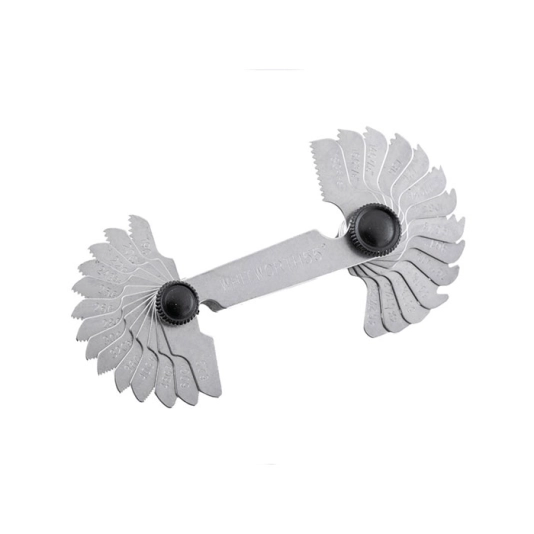

Kennedy 28 BLADE SCREW PITCH GAUGE 55 DEG WHIT
Ideal for accurately measuring internal and external thread forms. Manufactured from hardened and polished steel, the blades are precision milled for optimum accuracy. Enclosed in a steel case.
Featrures and Benefits
• Hardened and polished steel for increased durability
• With precision milled blades for accuracy
• Used to internal and external thread forms
• Enclosed in a steel case for easy storage and portability
Featrures and Benefits
• Hardened and polished steel for increased durability
• With precision milled blades for accuracy
• Used to internal and external thread forms
• Enclosed in a steel case for easy storage and portability
Download
