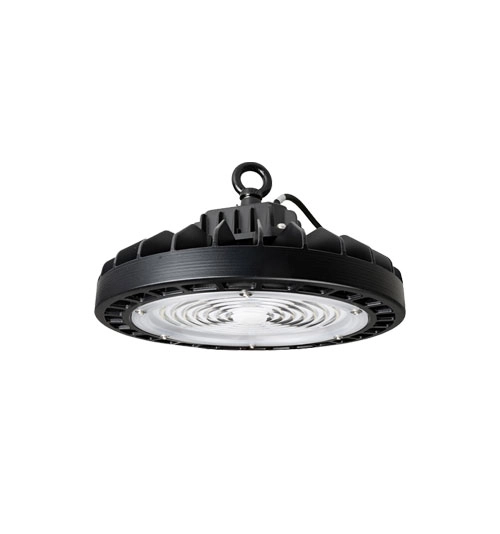

Panasonic NYV20104BE1A
Type of Luminaire : High Efficacy/Standard High Bay
Set Model No : NYV20104BE1A
Type of Light Source LED
Power Input : 200W
System Lumen Output : 28570 lm
System Efficacy : 143 lm/W
Power Voltage : 220-240V
Power Factor : 0.95
Lifetime : 50000H(L70)
CCT : 4000K
CRI : 80
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Beam Angle : 60deg.
IP Rating : 65
Ambient Temperature : -30 - 50°C
Surge Protection : 10kVA
Dimensions : 320mmx172mm
Weight : 3.9 kg
Body : ADC(Black)
Set Model No : NYV20104BE1A
Type of Light Source LED
Power Input : 200W
System Lumen Output : 28570 lm
System Efficacy : 143 lm/W
Power Voltage : 220-240V
Power Factor : 0.95
Lifetime : 50000H(L70)
CCT : 4000K
CRI : 80
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Beam Angle : 60deg.
IP Rating : 65
Ambient Temperature : -30 - 50°C
Surge Protection : 10kVA
Dimensions : 320mmx172mm
Weight : 3.9 kg
Body : ADC(Black)
Download
Produk Lainnya
M18 PAL-0
• 1500 Lumens of TRUEVIEW™ High Definition Output
• Powerful Magnetic base
• 2" Spring Loaded Clamp
• 1500 Lumens of TRUEVIEW™ High Definition Output
• Powerful Magnetic base
• 2" Spring Loaded Clamp
Type of Luminaire : Standard Floodlight (Pro) A Series
Set Model No : NYS12727LD2031
Type of Light Source : LED
Power Input : 706W
System Lumen Output : 106700 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 64deg.
Beam Angle : 75deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 487mmx537mmx720mm
Body : ADC
Set Model No : NYS12727LD2031
Type of Light Source : LED
Power Input : 706W
System Lumen Output : 106700 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 64deg.
Beam Angle : 75deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 487mmx537mmx720mm
Body : ADC
2 lights in 1: 5W COB as a work/ inspection light and 1 LED light in the top as a torch.
Features and Benefits
• 1 x Li-ion battery (included)
• ABS plastic with rubberised finish
• Beam distance: 20m
• Foldaway hanging hook
• USB and micro USB ports
• Includes USB charging cable 1.5m
• Integrated magnet on the back
• Adjustable magnetic base
• Working time: 3-4 hrs
• Charge time: 5-6 hrs
• Impact Resistance (drop test) 1m
• Operating temperature -20 - 50°C
• IPX-4 waterproof and designed for outside use in heavy rain
Features and Benefits
• 1 x Li-ion battery (included)
• ABS plastic with rubberised finish
• Beam distance: 20m
• Foldaway hanging hook
• USB and micro USB ports
• Includes USB charging cable 1.5m
• Integrated magnet on the back
• Adjustable magnetic base
• Working time: 3-4 hrs
• Charge time: 5-6 hrs
• Impact Resistance (drop test) 1m
• Operating temperature -20 - 50°C
• IPX-4 waterproof and designed for outside use in heavy rain
Air Circuit Breaker (ACB) is one type of electrical protection device commonly used in electrical systems. Air Circuit Breaker is an electrical protection device used to cut off the flow of electricity in an electrical circuit when there is a disturbance or excess current. This tool is generally used in industrial electrical panels and can be used in electrical systems with quite high voltage.
Air Circuit Breaker works by cutting off the flow of electricity in an electrical circuit when there is a disturbance or excess current. Air Circuit Breaker uses a special system consisting of several components, such as trip unit, operating mechanism, and current transformer. When there is a disturbance in an electrical circuit, the trip unit will detect excess current. Then, it gives a signal to the operating mechanism to cut off the flow of electricity in the circuit. After the electric current is cut off, Air Circuit Breaker will extinguish the arc that occurs using the arc extinguishing system that has been prepared.
The main function of Air Circuit Breaker is to protect electrical equipment and systems from damage due to over current or excess current, which usually occurs due to short circuit or overload.
Air Circuit Breaker works by cutting off the flow of electricity in an electrical circuit when there is a disturbance or excess current. Air Circuit Breaker uses a special system consisting of several components, such as trip unit, operating mechanism, and current transformer. When there is a disturbance in an electrical circuit, the trip unit will detect excess current. Then, it gives a signal to the operating mechanism to cut off the flow of electricity in the circuit. After the electric current is cut off, Air Circuit Breaker will extinguish the arc that occurs using the arc extinguishing system that has been prepared.
The main function of Air Circuit Breaker is to protect electrical equipment and systems from damage due to over current or excess current, which usually occurs due to short circuit or overload.
