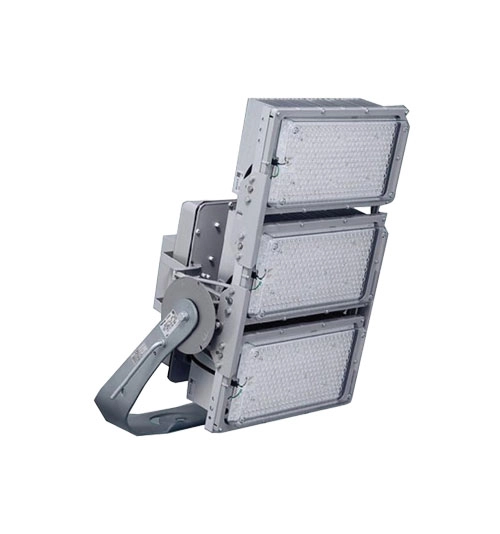

Type of Luminaire : Standard Floodlight (Pro) A Series Set Model No : NYS12747LD2031 Type of Light Source : LED Power Input : 661W System Lumen Output : 103400 lm Power Voltage : 200-242V Lifetime : 40000H(L70) CCT : 5000K CRI : 70 Input Frequency : 50/60Hz Dimming : non-Dimmable Glare Cut Angle : 54deg. Beam Angle : 34deg. IP Rating : 65 Ambient Temperature : -20 - 35°C Dimensions : 487mmx537mmx720mm Body : ADC
M18 ONERSAL-0 • 5400 Lumens of high quality light, Over a day of runtime • Waterproof: Fully submersible up to a meter • 5400 lumens up to 26 hours of runtime
Type of Luminaire : Standard Floodlight (Pro) A Series Set Model No : NYS12337LD2031 Type of Light Source : LED Power Input : 267W System Lumen Output : 40400 lm Power Voltage : 200-242V Lifetime : 40000H(L70) CCT : 5000K CRI : 70 Input Frequency : 50/60Hz Dimming : non-Dimmable Glare Cut Angle : 64deg. Beam Angle : 53deg. IP Rating : 65 Ambient Temperature : -20 - 35°C Dimensions : 422mmx534mmx340mm Body : ADC
Type of Luminaire : Standard Floodlight (Pro) A Series Set Model No : NNP19941031 Type of Light Source : LED Power Input : 200W System Lumen Output : 26000 lm Power Voltage : 110-240V Power Factor : 0.90 Lifetime : 50000H(L70) CCT : 5000K CRI : 70 Input Frequency : 50/60Hz Dimming : non-Dimmable Glare Cut Angle : 60deg. Beam Angle : 60deg. IP Rating : 65 Ambient Temperature : -40 - 50°C Dimensions : 304mmx473mmx296mm Body : ADC
Air Circuit Breaker (ACB) is one type of electrical protection device commonly used in electrical systems. Air Circuit Breaker is an electrical protection device used to cut off the flow of electricity in an electrical circuit when there is a disturbance or excess current. This tool is generally used in industrial electrical panels and can be used in electrical systems with quite high voltage.
Air Circuit Breaker works by cutting off the flow of electricity in an electrical circuit when there is a disturbance or excess current. Air Circuit Breaker uses a special system consisting of several components, such as trip unit, operating mechanism, and current transformer. When there is a disturbance in an electrical circuit, the trip unit will detect excess current. Then, it gives a signal to the operating mechanism to cut off the flow of electricity in the circuit. After the electric current is cut off, Air Circuit Breaker will extinguish the arc that occurs using the arc extinguishing system that has been prepared.
The main function of Air Circuit Breaker is to protect electrical equipment and systems from damage due to over current or excess current, which usually occurs due to short circuit or overload.
