Electrical & Lighting

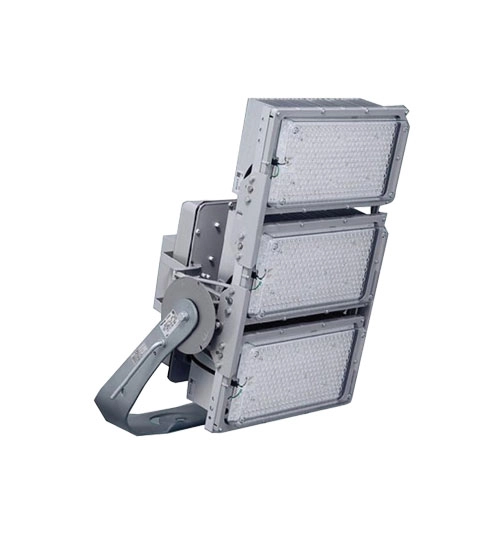

Panasonic NYS12717LD2031

Type of Luminaire : Standard Floodlight (Pro) A Series
Set Model No : NYS12717LD2031
Type of Light Source : LED
Power Input : 707W
System Lumen Output : 101000 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 77deg.
Beam Angle : 27deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 487mmx537mmx720mm
Body : ADC
Download
Produk Lainnya
M18 Pivoting Area Light
Milwaukee M18™ Pivoting Area Light
M18 PAL-0
• 1500 Lumens of TRUEVIEW™ High Definition Output
• Powerful Magnetic base
• 2" Spring Loaded Clamp
NYS12537LD2031
Panasonic NYS12537LD2031
Type of Luminaire : Standard Floodlight (Pro) A Series
Set Model No : NYS12537LD2031
Type of Light Source : LED
Power Input : 462W
System Lumen Output : 68000 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 64deg.
Beam Angle : 75deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 487mmx534mmx500mm
Body : ADC
NSP11760LR
Panasonic NSP11760LR
Type of Luminaire : Smart Street Light
Set Model No : NSP10460LR
Type of Light Source : LED
Power Input : 60W
System Lumen Output : 9000 lm
System Efficacy : 150 lm/W
Lifetime : 50000H(L70)
CCT: 5000K
CRI : 70
Dimming : non-Dimmable
Glare Cut Angle : 32deg.
Beam Angle : 117deg.
IP Rating : 66
Ambient Temperature : 5 - 40°C
Dimensions : 625mmx1944mmx269mm
Body : ADC & Aluminium Extrution
ACB 1000A 3P 100kA
Siemens ACB 1000A 3P 100kA
Air Circuit Breaker (ACB) is one type of electrical protection device commonly used in electrical systems. Air Circuit Breaker is an electrical protection device used to cut off the flow of electricity in an electrical circuit when there is a disturbance or excess current. This tool is generally used in industrial electrical panels and can be used in electrical systems with quite high voltage.

Air Circuit Breaker works by cutting off the flow of electricity in an electrical circuit when there is a disturbance or excess current. Air Circuit Breaker uses a special system consisting of several components, such as trip unit, operating mechanism, and current transformer. When there is a disturbance in an electrical circuit, the trip unit will detect excess current. Then, it gives a signal to the operating mechanism to cut off the flow of electricity in the circuit. After the electric current is cut off, Air Circuit Breaker will extinguish the arc that occurs using the arc extinguishing system that has been prepared.

The main function of Air Circuit Breaker is to protect electrical equipment and systems from damage due to over current or excess current, which usually occurs due to short circuit or overload.
