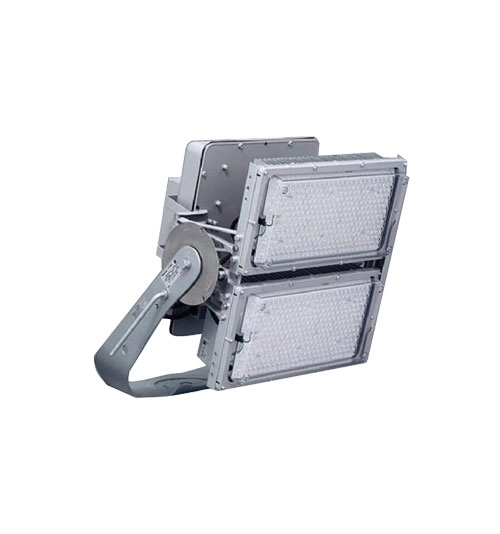

Panasonic NYS12547LD2031

Type of Luminaire : Standard Floodlight (Pro) A Series
Set Model No : NYS12547LD2031
Type of Light Source : LED
Power Input : 432W
System Lumen Output : 65500 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 54deg.
Beam Angle : 34deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 487mmx534mmx500mm
Body : ADC
Download
Produk Lainnya
NYV20150BE2A
Panasonic NYV20150BE2A
Type of Luminaire : High Efficacy/Standard High Bay
Set Model No : NYV20150BE2A
Type of Light Source LED
Power Input : 75W
System Lumen Output : 10710 lm
System Efficacy : 143 lm/W
Power Voltage : 220-240V
Power Factor : 0.95
Lifetime : 50000H(L70)
CCT : 5000K
CRI : 80
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Beam Angle : 60deg.
IP Rating : 65
Ambient Temperature : -30 - 50°C
Surge Protection : 10kVA
Dimensions : 240mmx166mm
Weight : 1.99 kg
Body : ADC(Black)
NYS12537LD2031
Panasonic NYS12537LD2031
Type of Luminaire : Standard Floodlight (Pro) A Series
Set Model No : NYS12537LD2031
Type of Light Source : LED
Power Input : 462W
System Lumen Output : 68000 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 64deg.
Beam Angle : 75deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 487mmx534mmx500mm
Body : ADC
NYV20155BE2A
Panasonic NYV20155BE2A
Type of Luminaire : High Efficacy/Standard High Bay
Set Model No : NYV20155BE2A
Type of Light Source LED
Power Input : 75W
System Lumen Output : 10710 lm
System Efficacy : 143 lm/W
Power Voltage : 220-240V
Power Factor : 0.95
Lifetime : 50000H(L70)
CCT : 5000K
CRI : 80
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Beam Angle : 60deg.
IP Rating : 65
Ambient Temperature : -30 - 50°C
Surge Protection : 10kVA
Dimensions : 240mmx166mm
Weight : 1.99 kg
Body : ADC(Black)
Masterpact NT external power supply module input voltage 200 V AC to 240 V AC 5060 Hz output voltage 24 V DC output current 1 A
Schneider Masterpact NT external power supply module, input voltage 200 V AC to 240 V AC 50/60 Hz, output voltage 24 V DC, output current 1 A
ComPacT circuit breakers feature Schneider Electric’s exclusive Roto-Active Breaking System; it reduces the effects of short circuits of your installation. Today, the ComPacT range is optimized with a high level of breaking capacities, outstanding selectivity and cascading. It offers more advanced functions and ergonomic designs for easy installation and operations.
