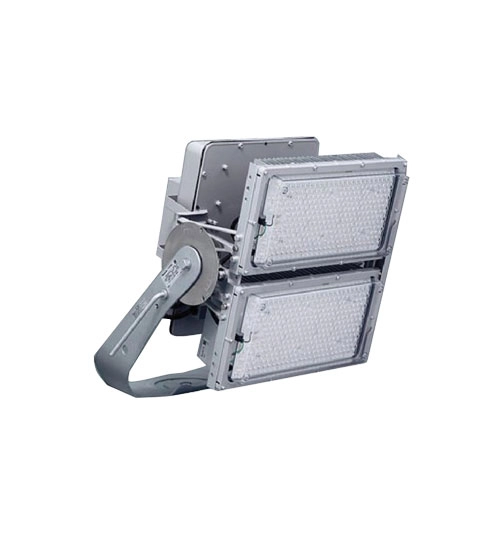

Type of Luminaire : Standard Floodlight (Pro) A Series
Set Model No : NYS12337LD2031
Type of Light Source : LED
Power Input : 267W
System Lumen Output : 40400 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 64deg.
Beam Angle : 53deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 422mmx534mmx340mm
Body : ADC

This Domae product is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles and 6A In rated current and C tripping curve. The Icn rated short circuit breaking capacity is up to 6000A at 400VAC conforming to EN/IEC 60898-1 standard. It is compliant with IEC 60898-1 standard. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 10000 cycles. The Ue operational voltage is going from 400VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 6 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 54mm x (H) 81mm x (D) 71.5mm. The weight is 0.285kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C.

Type of Luminaire : Standard Floodlight (Pro) A Series
Set Model No : NYS12527LD2031
Type of Light Source : LED
Power Input : 462W
System Lumen Output : 68900 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 70deg.
Beam Angle : 53deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 487mmx534mmx500mm
Body : ADC

KLF010
Eco friendly COB LED boasts low power consumption, 90% energy saving when compared with ordinary floodlights. Supplied with steel stand and has an adjustable head to light up out of reach areas. Beam angle of 120°. Aluminium die-cast alloy body with stainless steel external fixings and toughened glass. Suitable for outdoor use with IP65 rating. 2 chargers included (12V & 240V) along with 4 types of universal international plug adaptors. 5 hours charging time.

Features and Benefits
• Eco friendly 10W COB LED equivalent to 100W halogen
• Steel stand and an adjustable head to light up out of reach areas
• Beam angle of 120°
• Aluminium die-cast alloy body with stainless steel external fixings and toughened glass
• Suitable for outdoor use with IP65 rating. Two chargers included (12V & 240V) along with 4 types of universal international plug adaptors

Technical Information
• Dimensions (H x W x D): 250 x 145 x 165mm.
