Electrical & Lighting

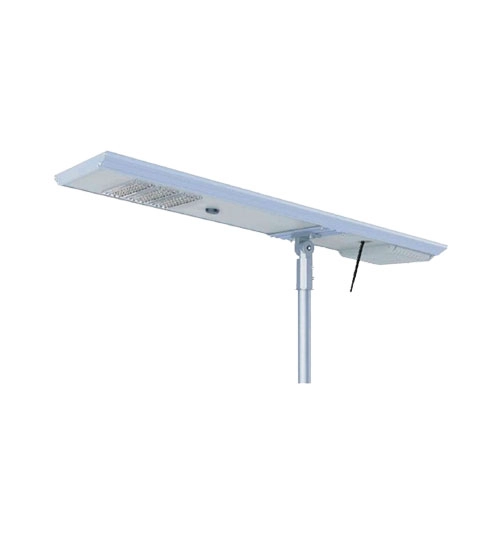

Panasonic NSP10560LR
Type of Luminaire : Smart Street Light
Set Model No : NSP10460LR
Type of Light Source : LED
Power Input : 40W
System Lumen Output : 6000 lm
System Efficacy : 150 lm/W
Lifetime : 50000H(L70)
CCT: 5000K
CRI : 70
Dimming : non-Dimmable
Glare Cut Angle : 32deg.
Beam Angle : 117deg.
IP Rating : 66
Ambient Temperature : 5 - 40°C
Dimensions : 435mmx1878mmx270mm
Body : ADC & Aluminium Extrution
Set Model No : NSP10460LR
Type of Light Source : LED
Power Input : 40W
System Lumen Output : 6000 lm
System Efficacy : 150 lm/W
Lifetime : 50000H(L70)
CCT: 5000K
CRI : 70
Dimming : non-Dimmable
Glare Cut Angle : 32deg.
Beam Angle : 117deg.
IP Rating : 66
Ambient Temperature : 5 - 40°C
Dimensions : 435mmx1878mmx270mm
Body : ADC & Aluminium Extrution
