Type of Luminaire : Standard Floodlight (Pro) A Series
Set Model No : NYS12347LD2031
Type of Light Source : LED
Power Input : 264W
System Lumen Output : 41000 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 60deg.
Beam Angle : 54deg.
IP Rating : 75deg.
Ambient Temperature : -20 - 35°C
Dimensions : 422mmx534mmx340mm
Body : ADC

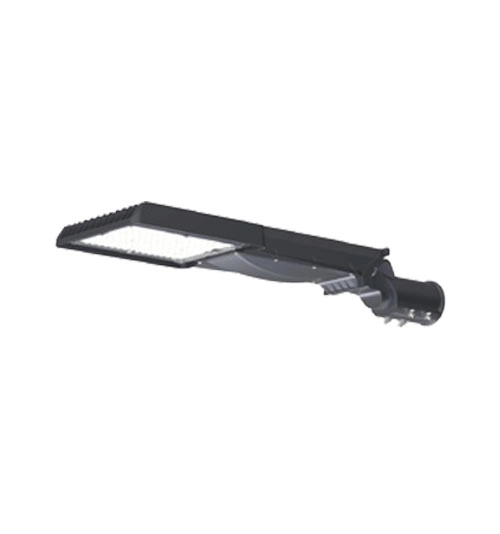

Type of Luminaire : Street Light EVO
Set Model No : NNP11740GL
Type of Light Source : LED
Power Input : 40W
System Lumen Output : 5200 lm
Power Voltage : 100-240V
Power Factor : 0.90
Lifetime : 50000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : 5 steps automatic dimming
IP Rating : 66
Ambient Temperature : 5°C~40°C
Dimensions : 732×212×109mm
Body : ADC

Type of Luminaire : Street Light EVO
Set Model No : NNP11740GL
Type of Light Source : LED
Power Input : 40W
System Lumen Output : 5200 lm
Power Voltage : 100-240V
Power Factor : 0.90
Lifetime : 50000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : 5 steps automatic dimming
IP Rating : 66
Ambient Temperature : 5°C~40°C
Dimensions : 564×157×101mm
Body : ADC

This Acti9 iK60N product is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles and 40A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 6000A at 230VAC conforming to EN/IEC 60898-1 standard and at conforming to standard. This product is compliant with EN/IEC 60898-1 standard. This miniature circuit breaker protects circuit against short circuit and overload current. It has a double clip for dismounting with comb busbar in place. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 230VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 85mm x (D) 78.5mm. The weight is 200g. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C.
